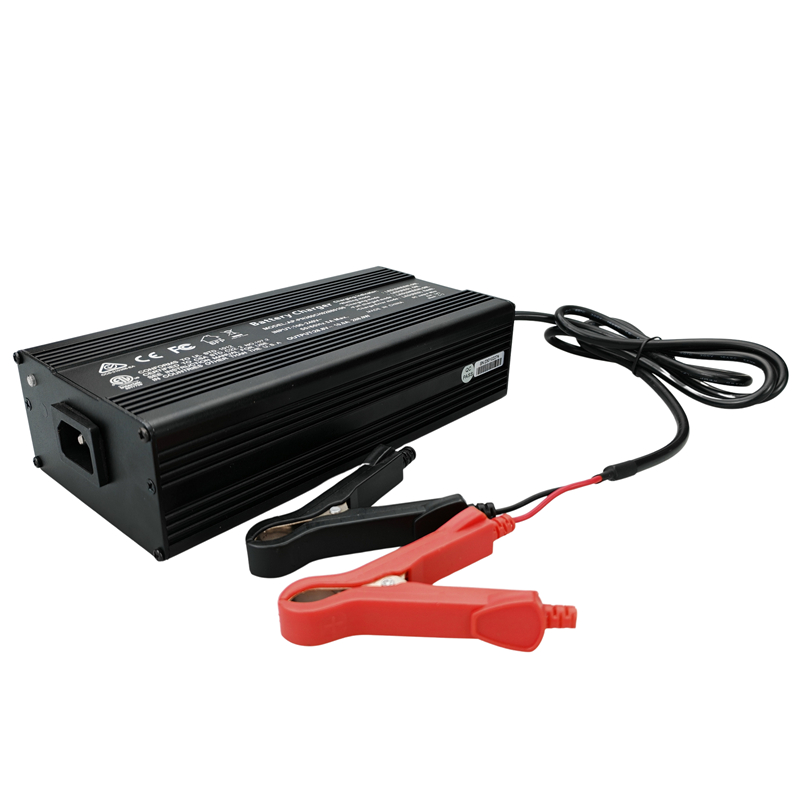

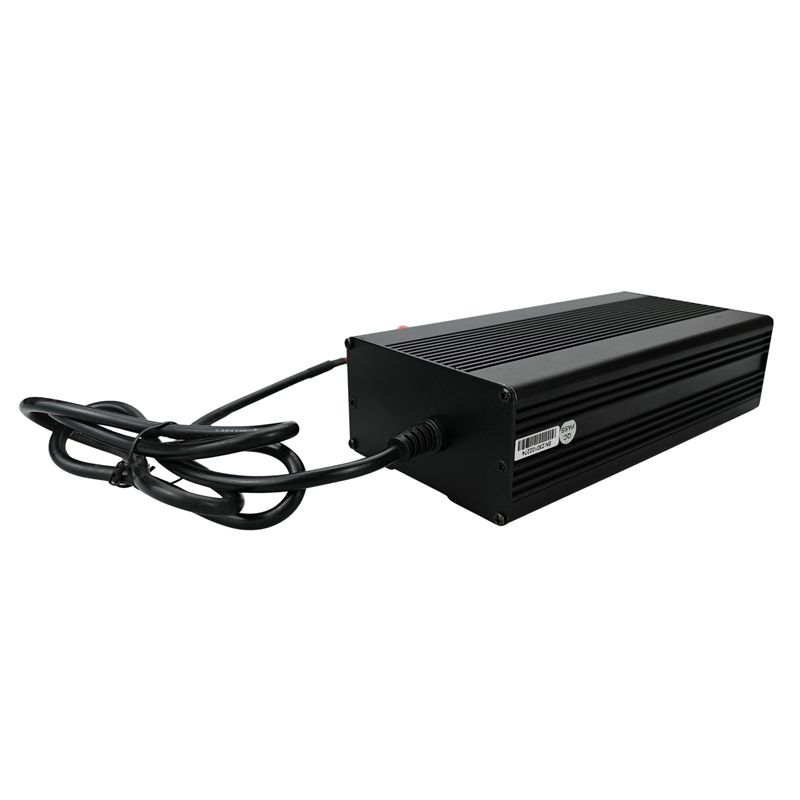

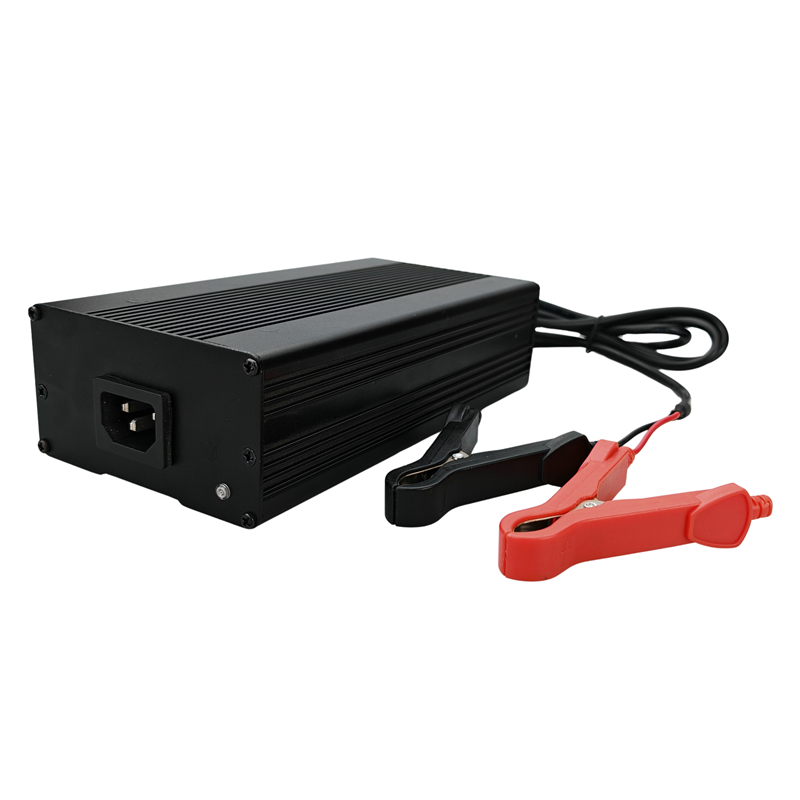

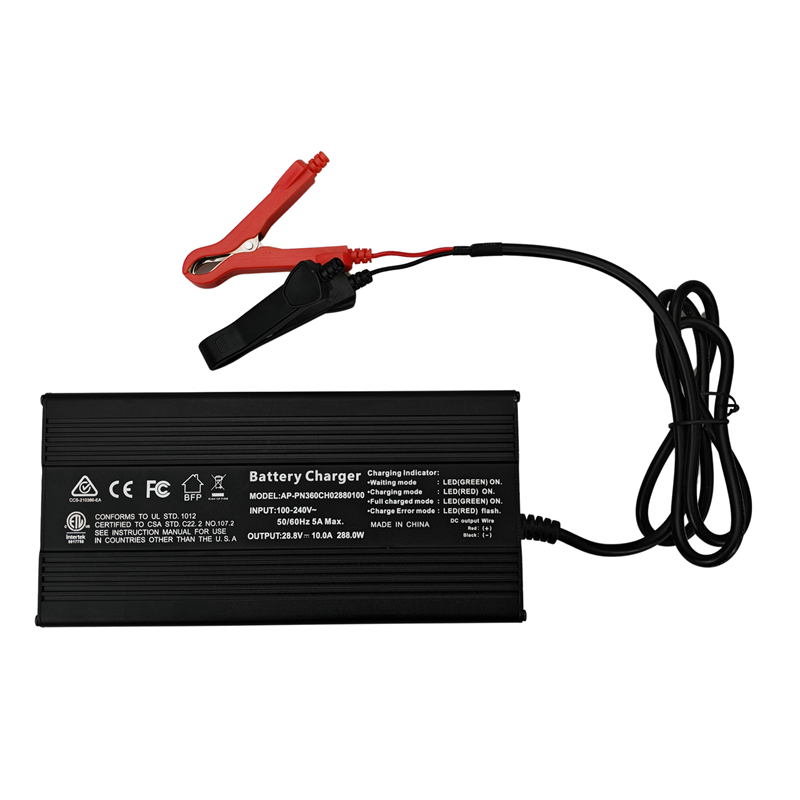

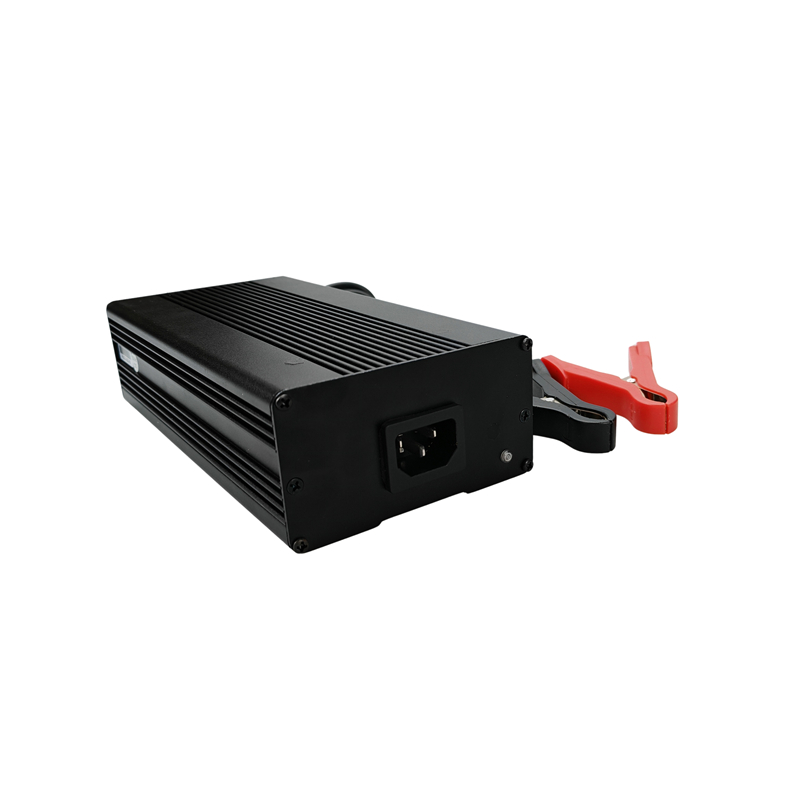

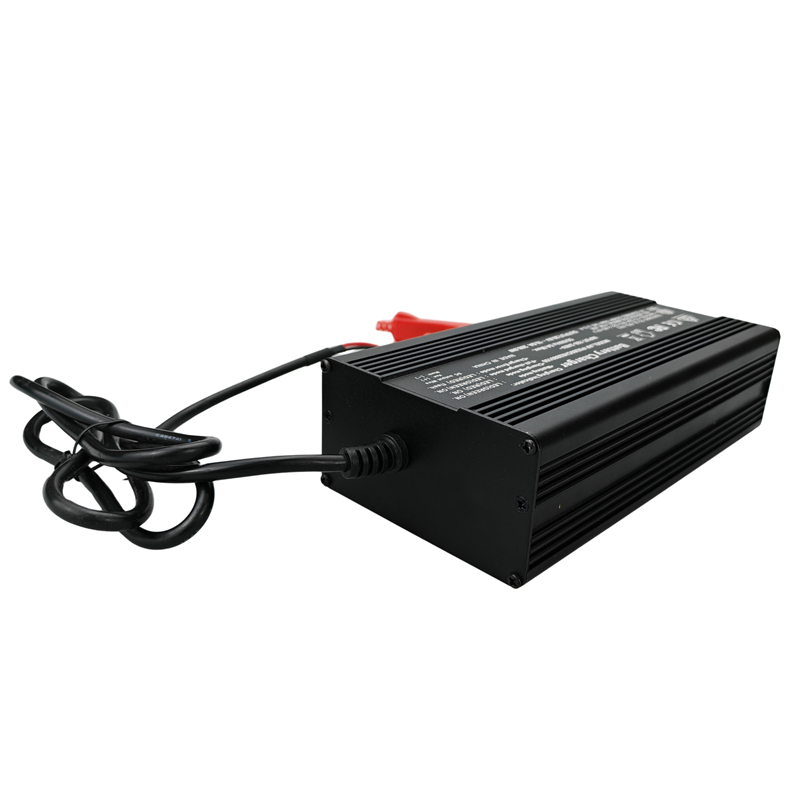

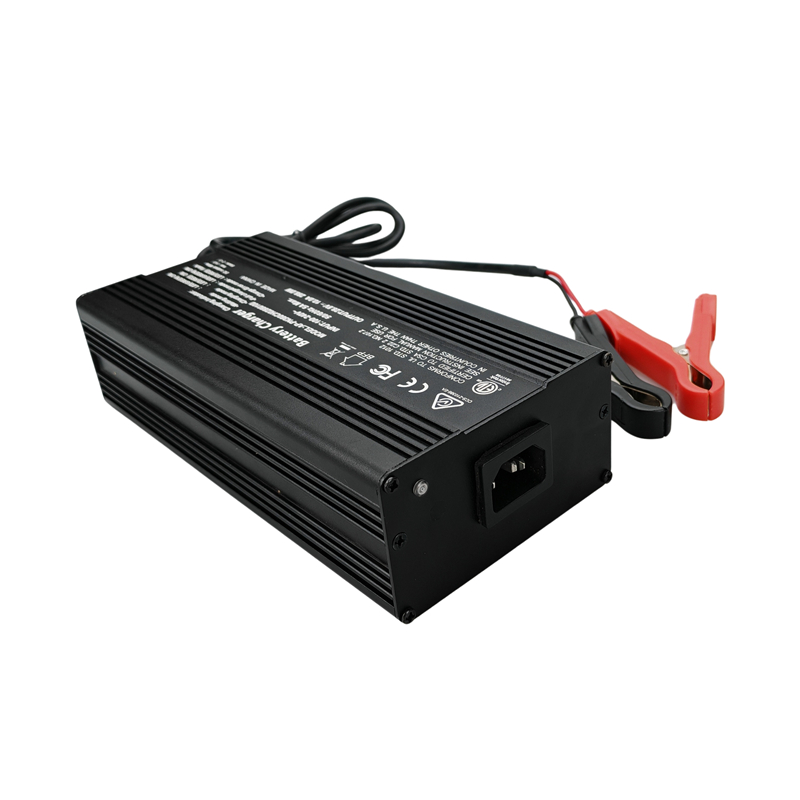

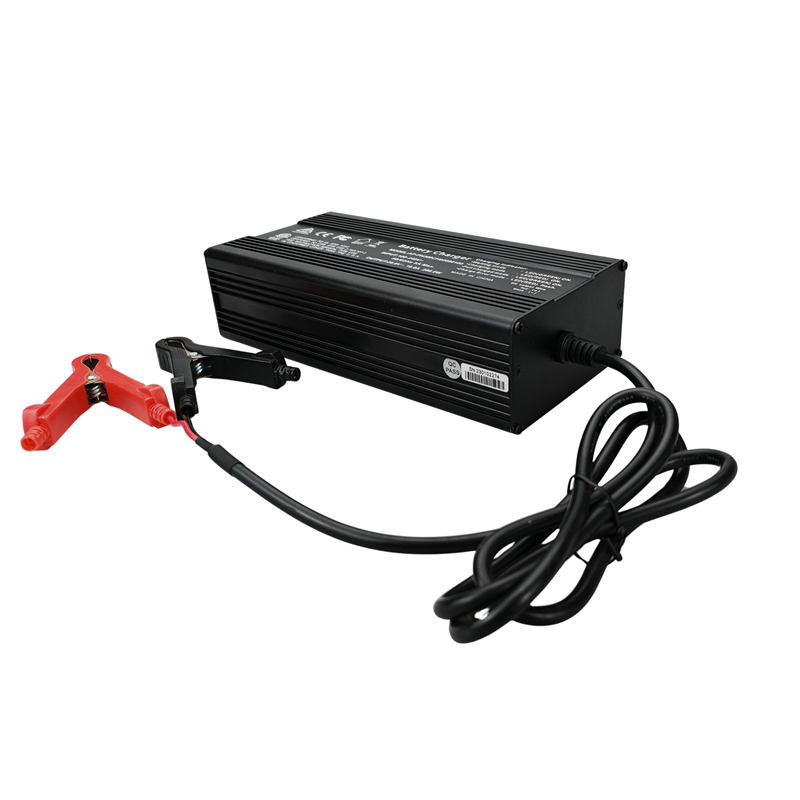

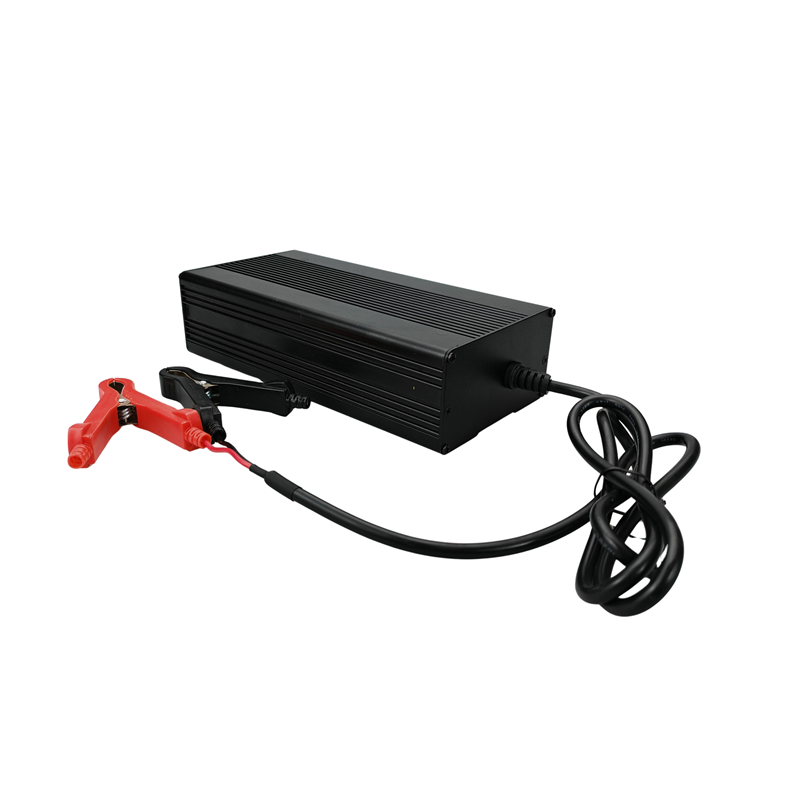

360W waterproof aluminum charger

Model：12-72V 4-18A

Typical outputs: 12V18A, 24V10A, 36V8A, 48V6A, 60V5A, 72V4A

Protection: overcurrent protection, overvoltage protection, short circuit protection, reverse connection protection, battery open circuit protection

Safety certification: CE

Request A Quote
Technical indicators

Rated Input Voltage 100Vac-240Vac
Input Frequency 50/60 Hz
Input Current 5A MAX
Power Factor ≥0.9 Input 230Vac@ Full load
Output Voltage 12-90V
Output Current 0.1-18A
Full Load Efficiency ≥88% Input230Vac@Full load
Efficiency Support 485
Operating Temperature -10°C~40°C
Storage Temperature -40°C~70°C
Waterproof class Ip67
Dimensions(mm) 235*100*54
Net Weight 2.0KG
Protection function

Over current protection
Overvoltage protection
Short circuit protection
Reverse polarity protection
Anti reverse current protection
Anti spark protection
Specification and model

Specification and Model Lithium iron phosphate/LiFePO4 14.6V18A 29.2V10A 43.8V8A 58.4V6A 73V5A
 87.6V4A
Triple/Litium 12.6V18A 29.4V10A 42V8A 54.6V6A 71.4V5A
 84V4A
Lead acid/Lead acid 12V18A 24V10A 36V8A 48V6A 60V5A 72V4A

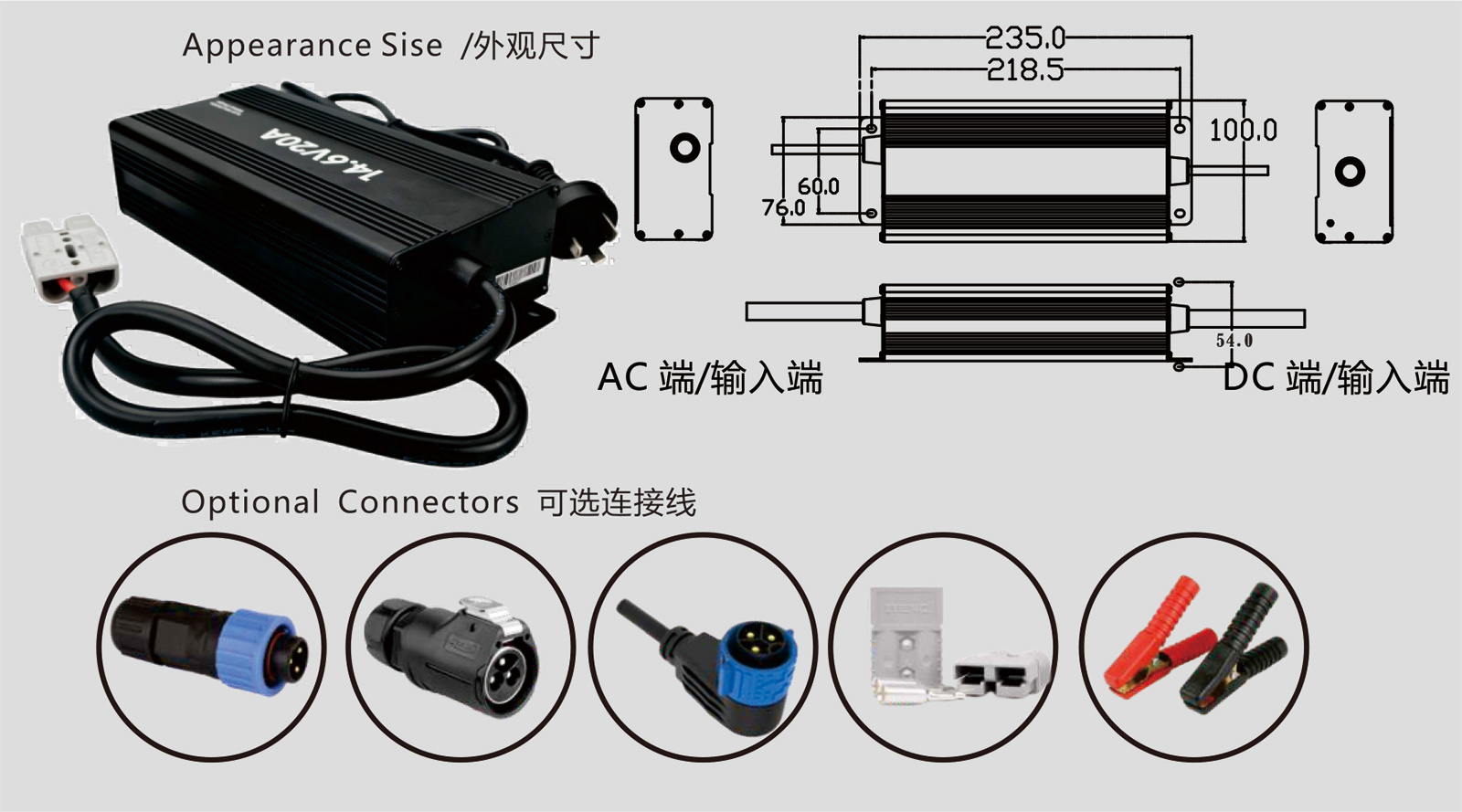

Product size
