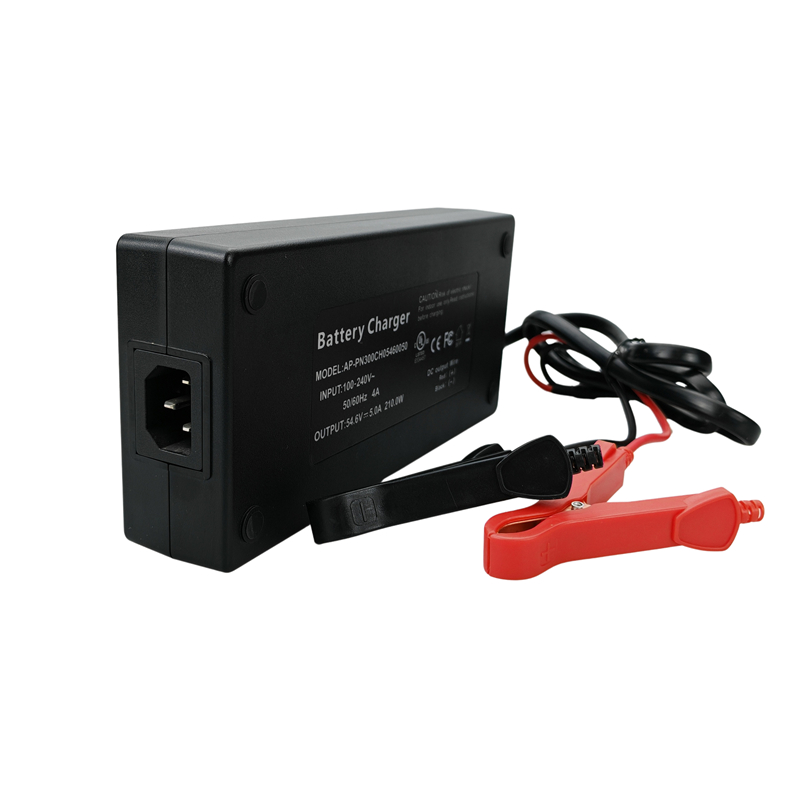

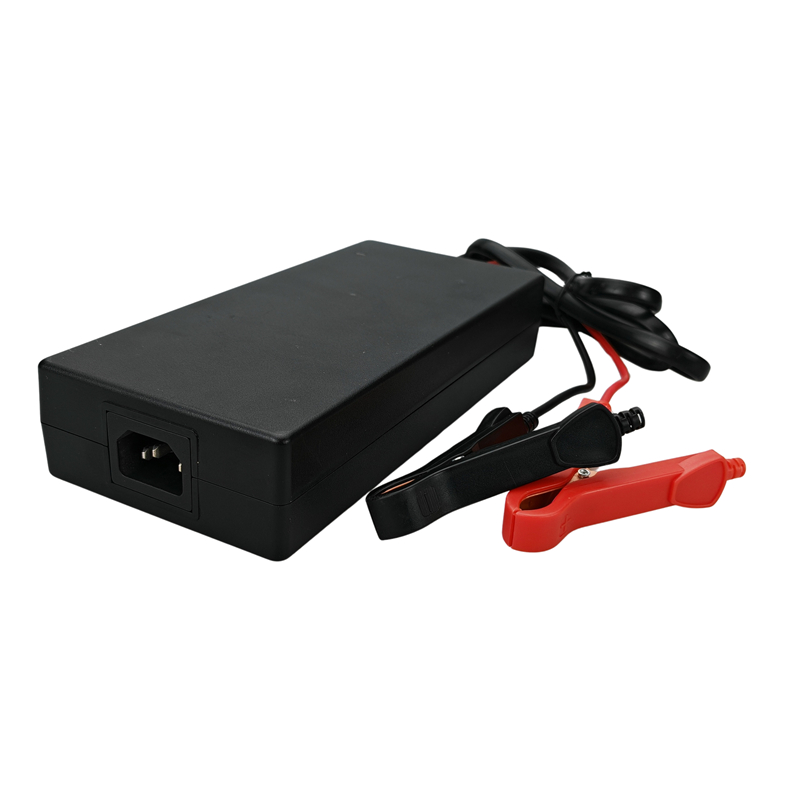

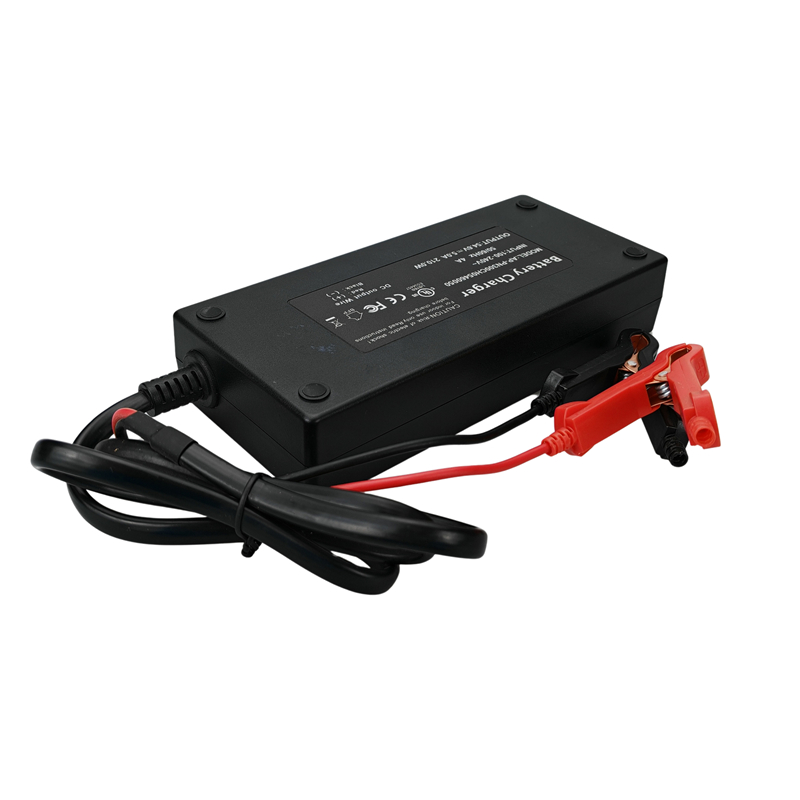

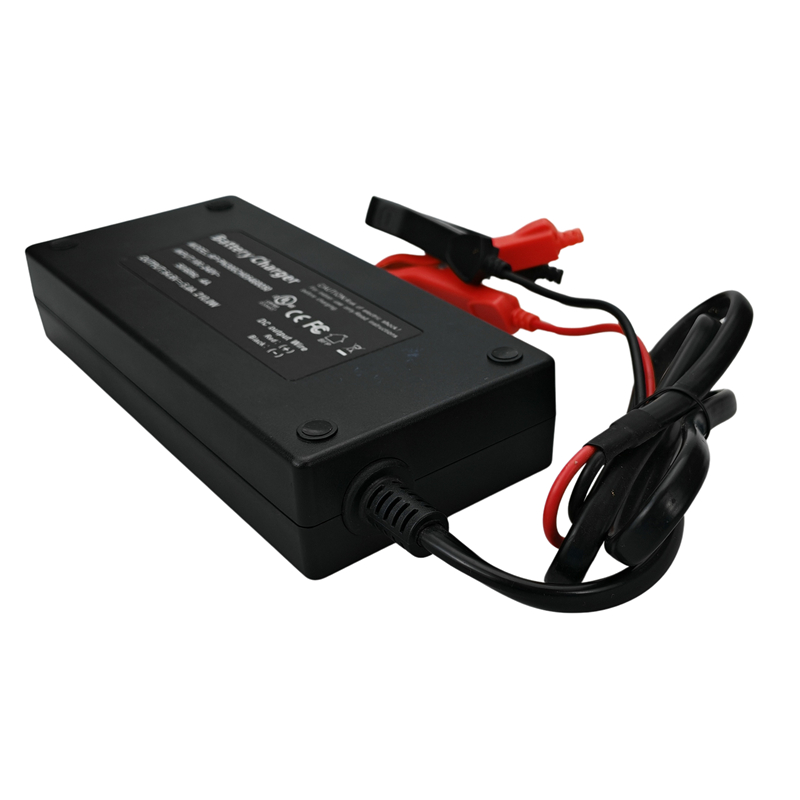

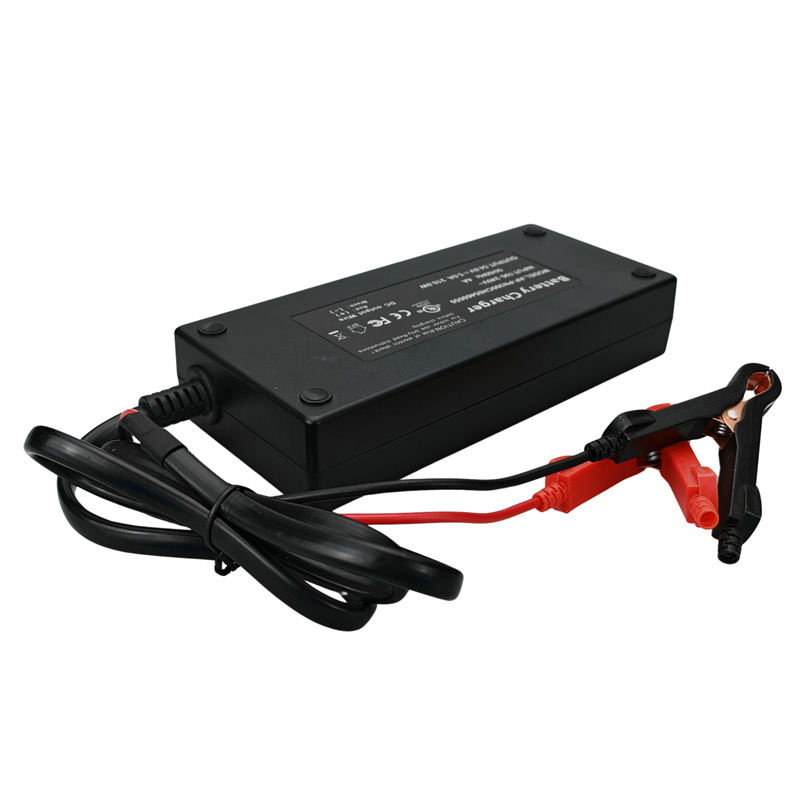

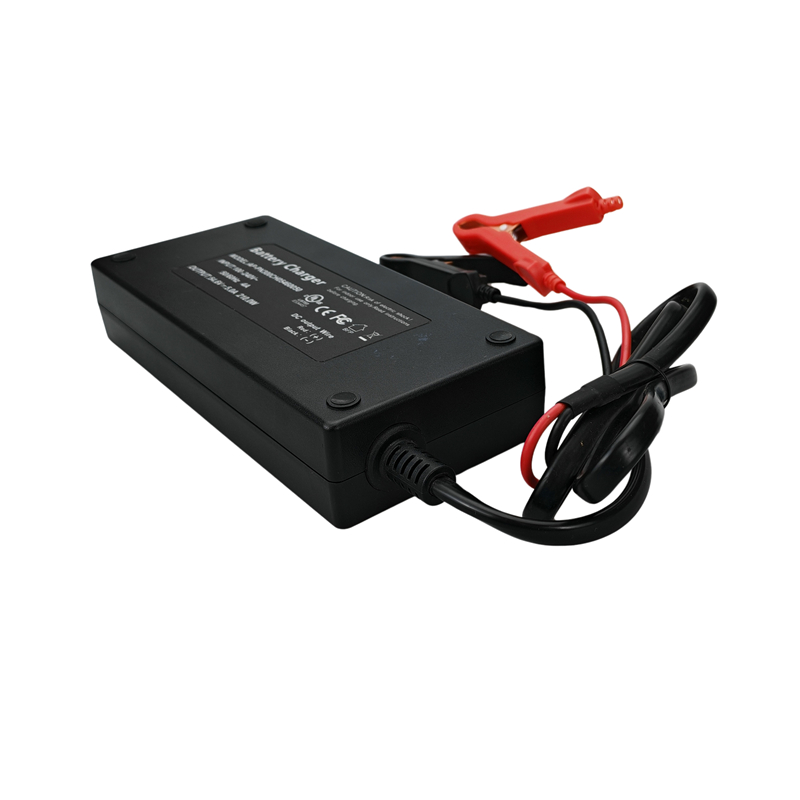

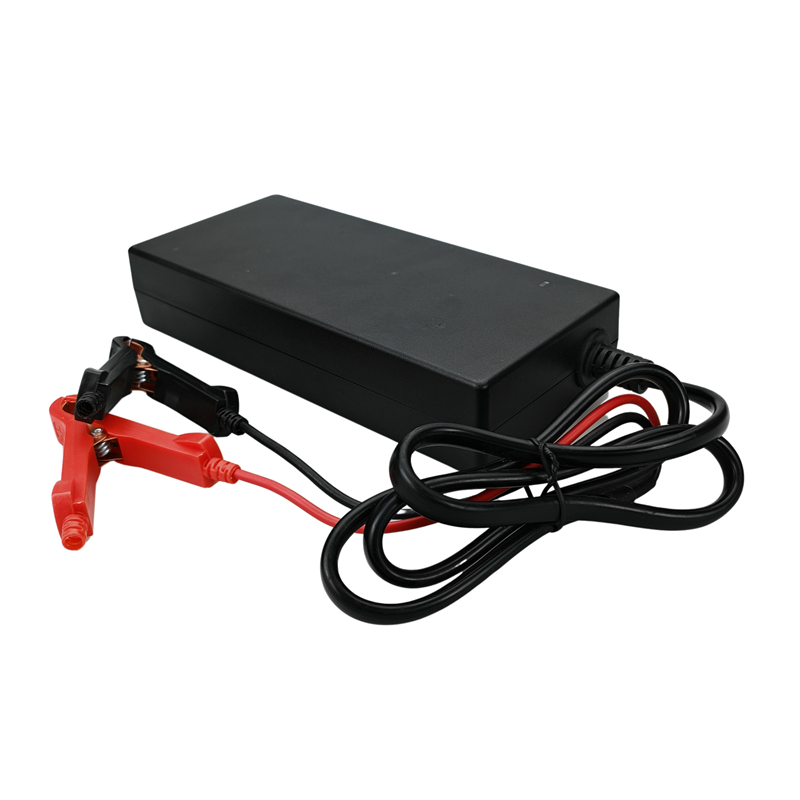

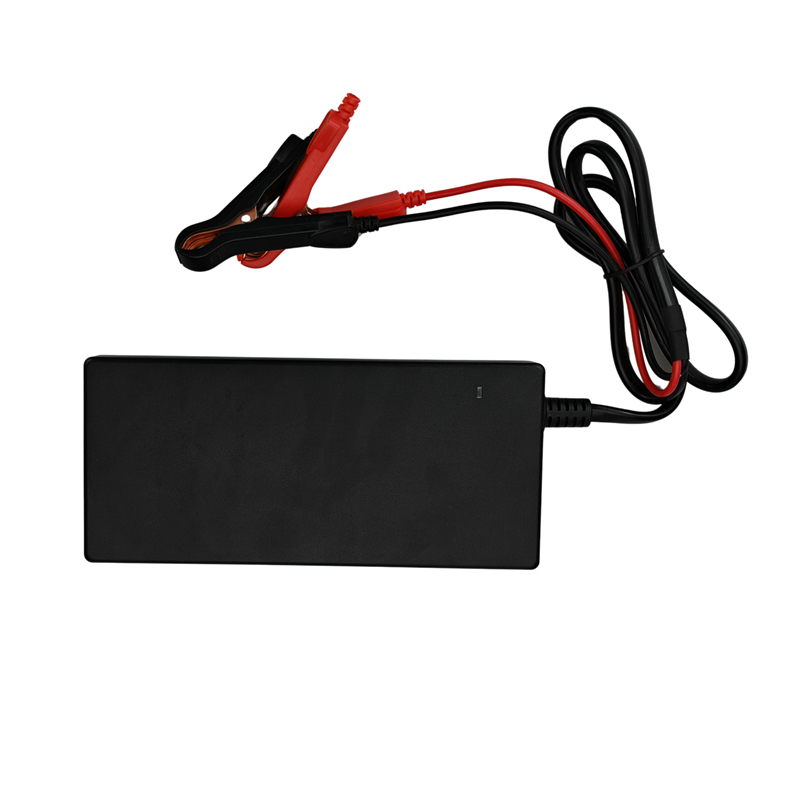

Model：12-72V 3-18A
Typical outputs: 12V18A, 24V10A, 36V7A, 48V5A, 60V4A, 72V3A
Protection: overcurrent protection, overvoltage protection, short circuit protection, reverse connection protection, battery open circuit protection
Safety certification: CE
| Rated Input Voltage | 100Vac-240Vac |
| Input Frequency | 50/60 Hz |
| Input Current | 5A MAX |
| Power Factor | ≥0.9 Input 230Vac@ Full load |
| Output Voltage | 10-90V |
| Output Current | 0.1-20A |
| Full Load Efficiency | ≥88% Input230Vac@Full load |
| Efficiency | Support 485 |
| Operating Temperature | -10°C~40°C |
| Storage Temperature | -40°C~70°C |

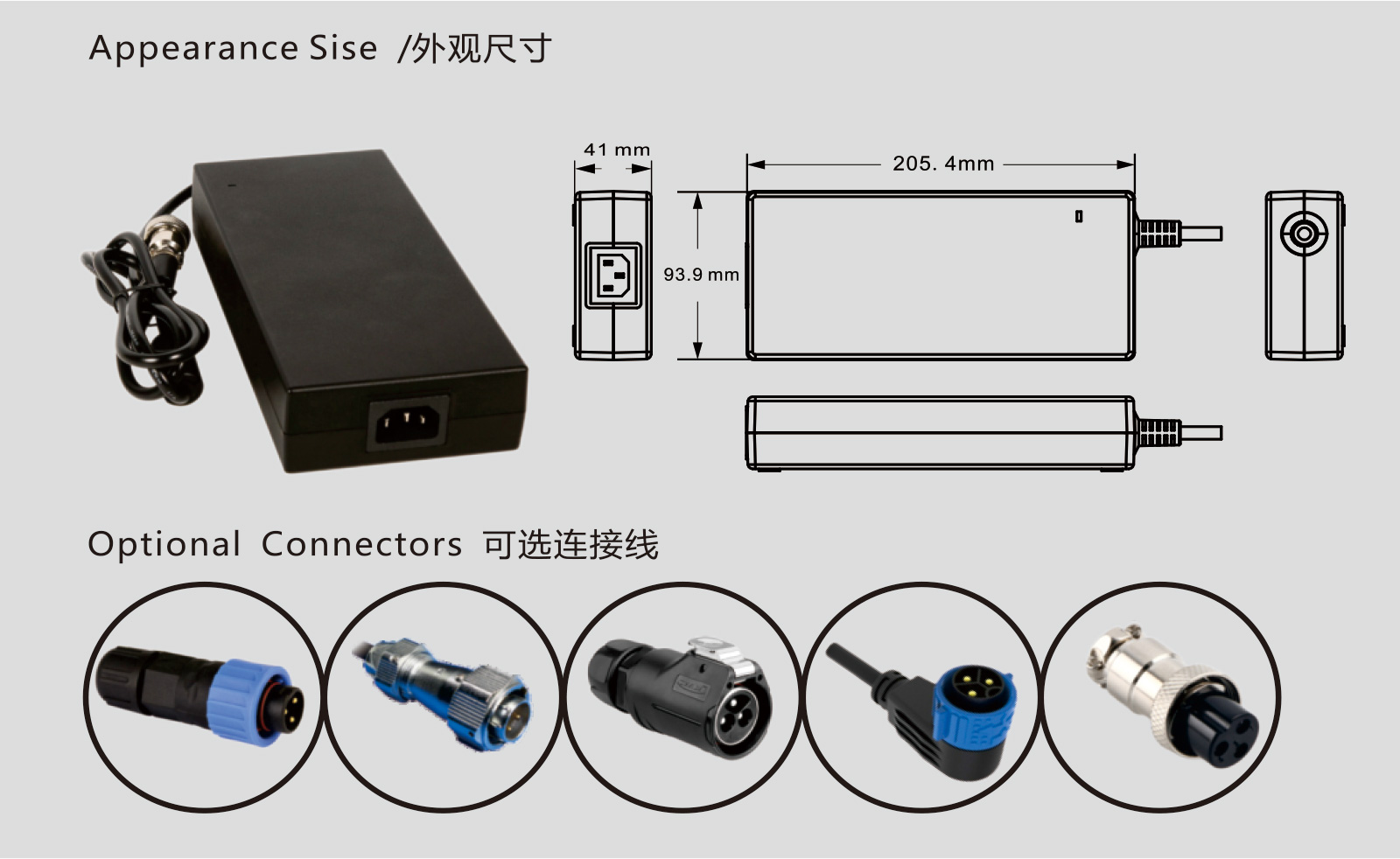

| Dimensions(mm) | 205.4*39.9*41 |
| Net Weight | 1.2KG |
| Over current protection |
| Overvoltage protection |
| Short circuit protection |
| Reverse polarity protection |
| Anti reverse current protection |
| Anti spark protection |
| Specification and Model | Lithium iron phosphate/LiFePO4 | 14.6V18A | 29.2V10A | 43.8V7A | 58.4V5A | 73V4A |
87.6V3A |
| Triple/Litium | 12.6V18A | 29.4V10A | 42V7A | 54.6V5A | 71.4V4A |
84V3A |
|
| Lead acid/Lead acid | 12V18A | 24V10A | 36V7A | 48V5A | 60V4A | 72V3A |
