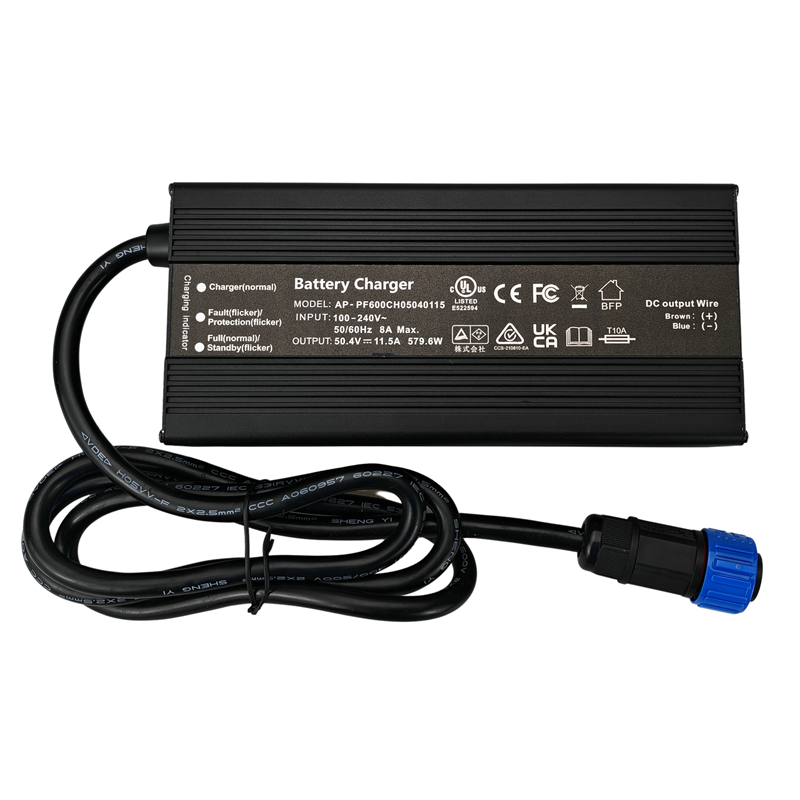

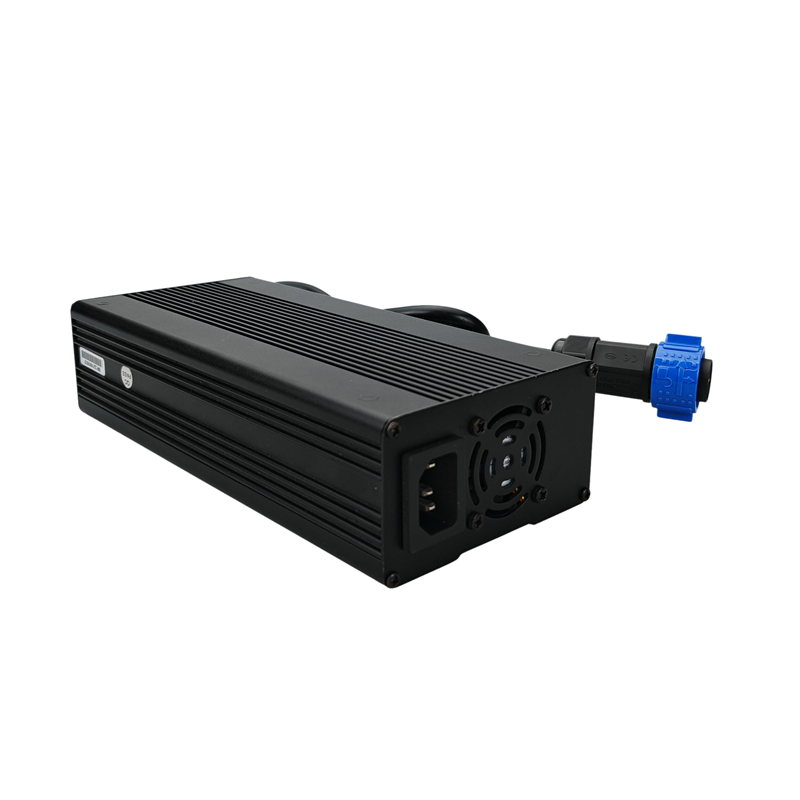

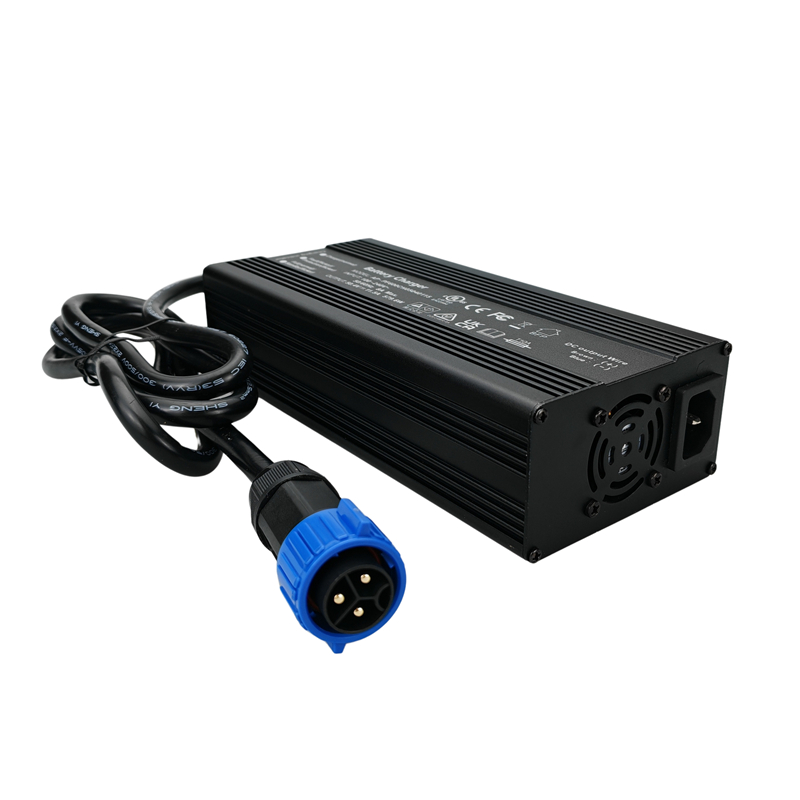

Model：12-72V 7-30A
Typical outputs: 12V30A, 24V20A, 36V14A, 48V10A, 60V8A, 72V7A
Protection: overcurrent protection, overvoltage protection, short circuit protection, reverse connection protection, battery open circuit protection
Safety certification: CE
| Rated Input Voltage | 100Vac-240Vac |
| Input Frequency | 50/60 Hz |
| Input Current | 8A MAX |
| Power Factor | ≥0.95 Input 230Vac@ Full load |
| Output Voltage | 10-88.2V |
| Output Current | 0.1-30A |
| Full Load Efficiency | ≥92% Input230Vac@Full load |
| Efficiency | Support CAN 485 |
| Operating Temperature | -10°C~40°C |
| Storage Temperature | -40°C~70°C |

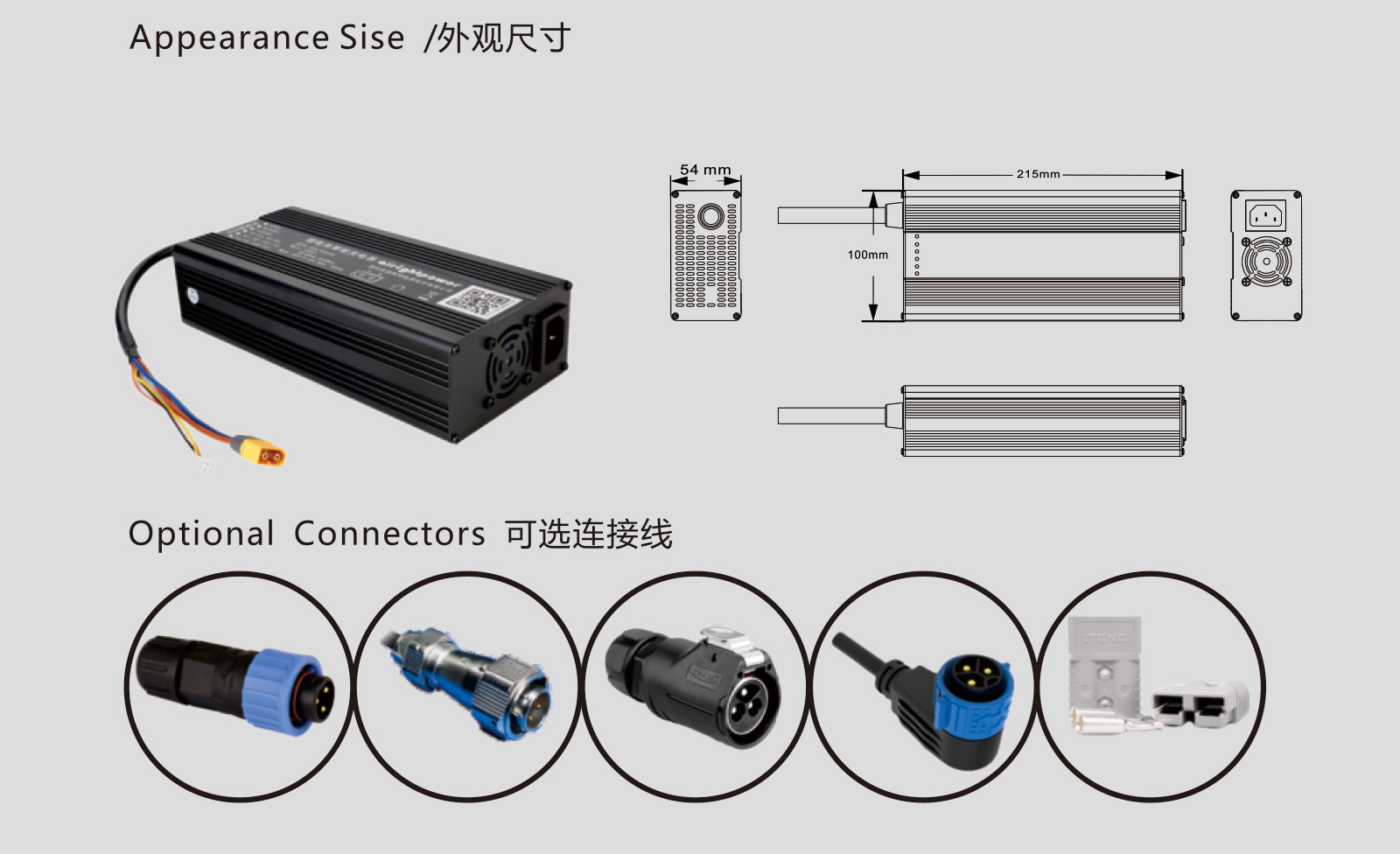

| Dimensions(mm) | 215*100*54 |
| Net Weight | 1.5KG |
| Over current protection |
| Overvoltage protection |
| Short circuit protection |
| Reverse polarity protection |
| Anti reverse current protection |
| Anti spark protection |
| Specification and Model | Lithium iron phosphate/LiFePO4 | 14.6V30A | 29.2V20A | 43.8V13A | 58.4V10A | 73V8A |
87.6V7A |
| Triple/Litium | 12.6V30A | 29.4V20A | 42V14A | 54.6V10A | 71.4V8A |
84V7A |
|
| Lead acid/Lead acid | 12V30A | 24V20A | 36V14A | 48V10A | 60V8A | 72V7A |
