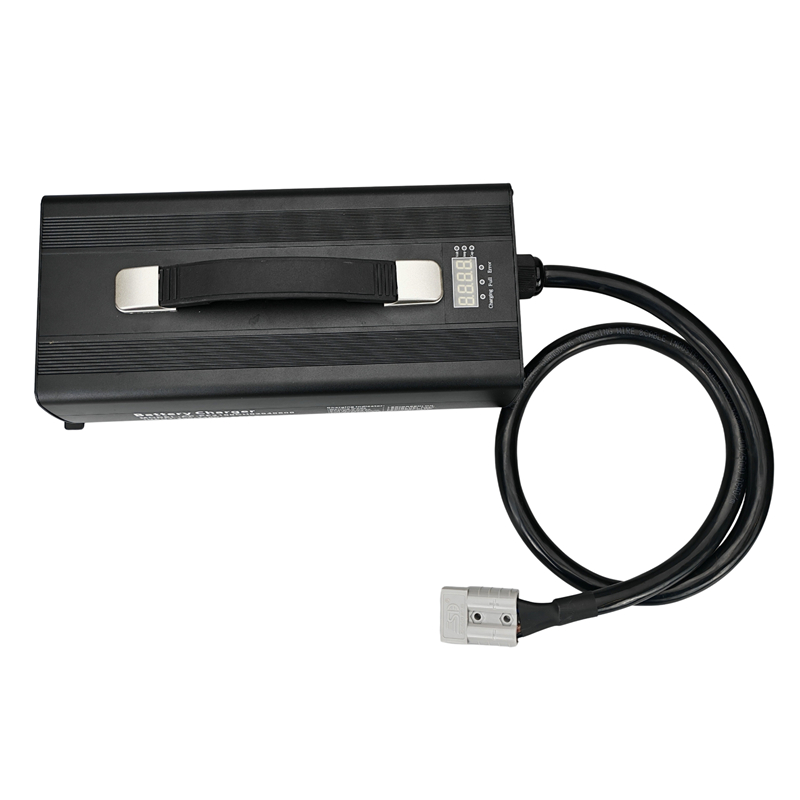

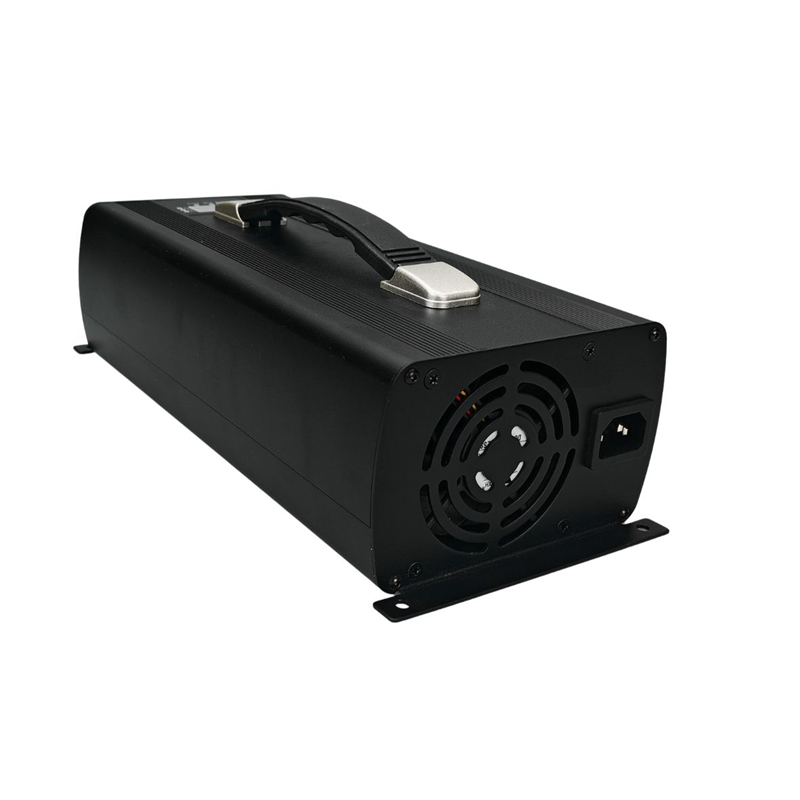

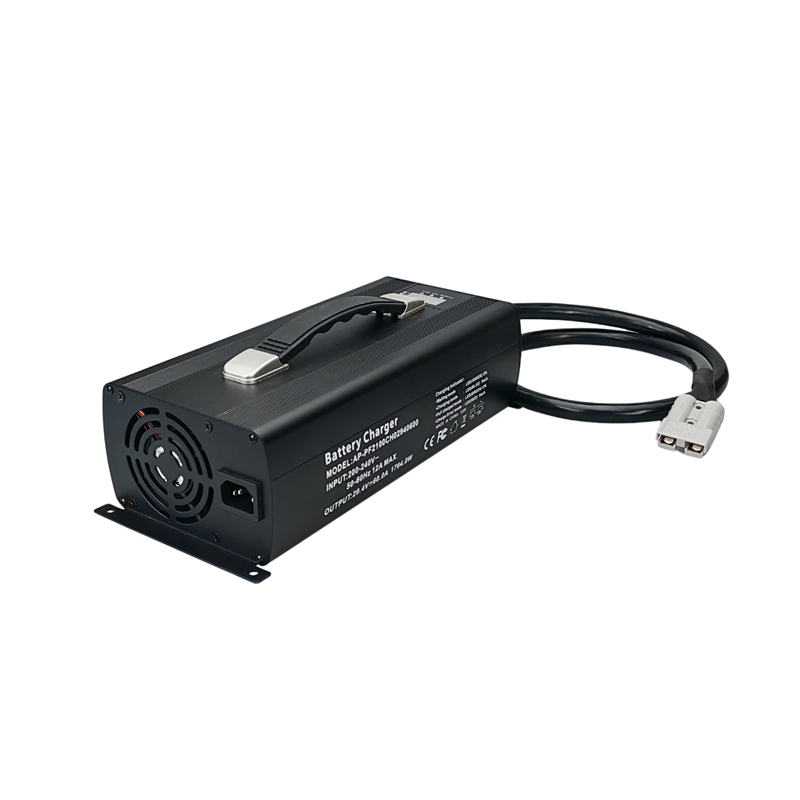

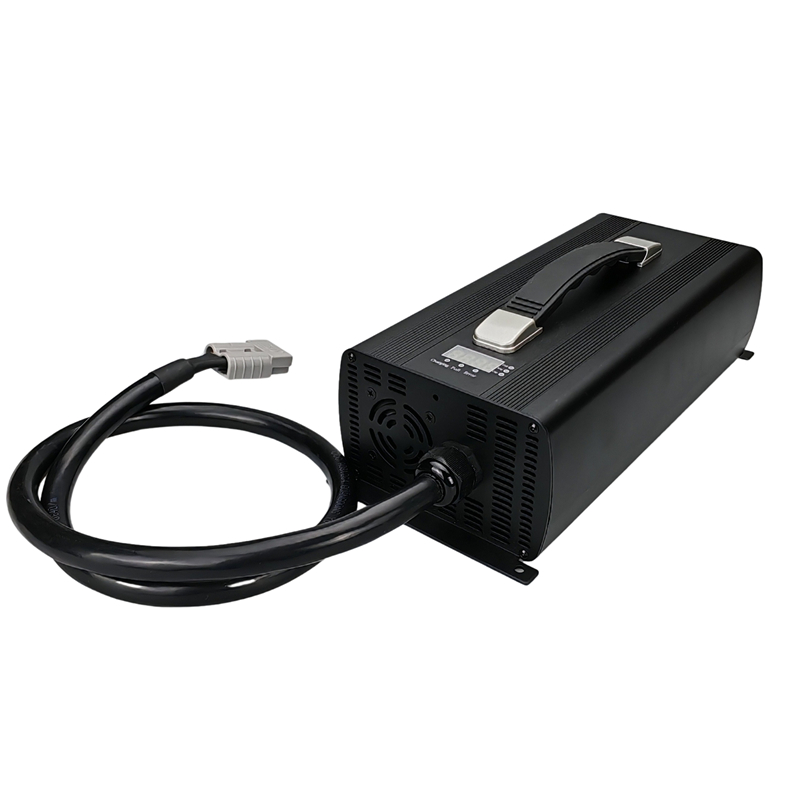

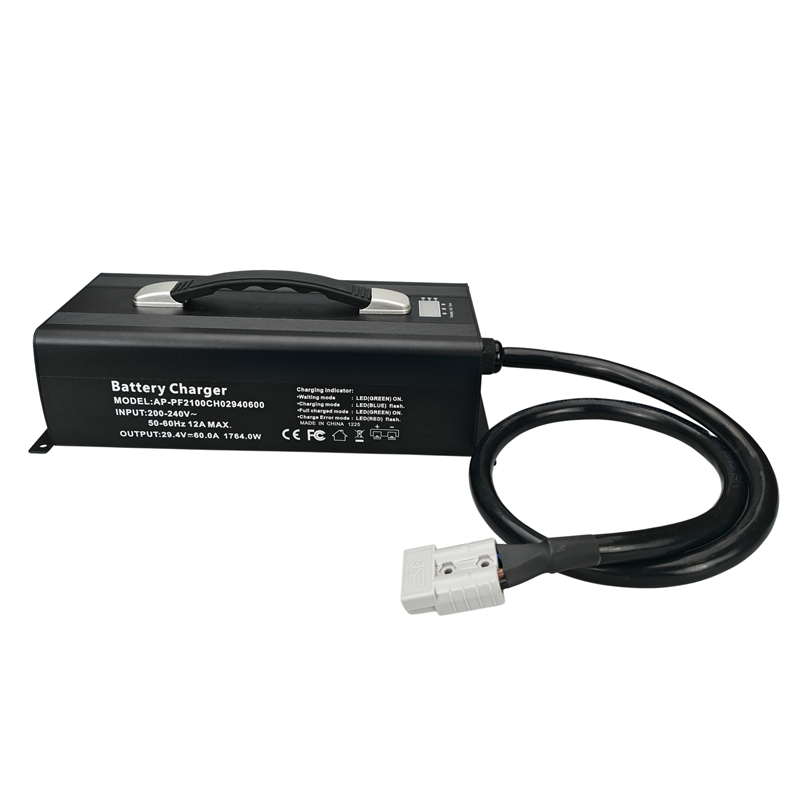

Model：24-72V 24-70A
Typical outputs: 24V70A, 36V50A, 48V35A, 60V28A, 72V24A
Protection: overcurrent protection, overvoltage protection, short circuit protection, reverse connection protection, battery open circuit protection
Safety certification: CE
| Rated input voltage | 200Vac-240Vac |
| Input Frequency | 50/60 Hz |
| Input current | 16A MAX |
| Power Factor | ≥0.95 Input 230Vac@ Full load |
| Output Voltage | 12-90V |
| Output current Curren | 0.1-70A |
| Full Load Efficiency | ≥92% Input230Vac@Full load |
| Efficiency of communication methods | Support CAN 485 |
| Operating temperature | -10°C~40°C |
| Storage Temperature | -40°C~70°C |
| Waterproof class | Ip67 |

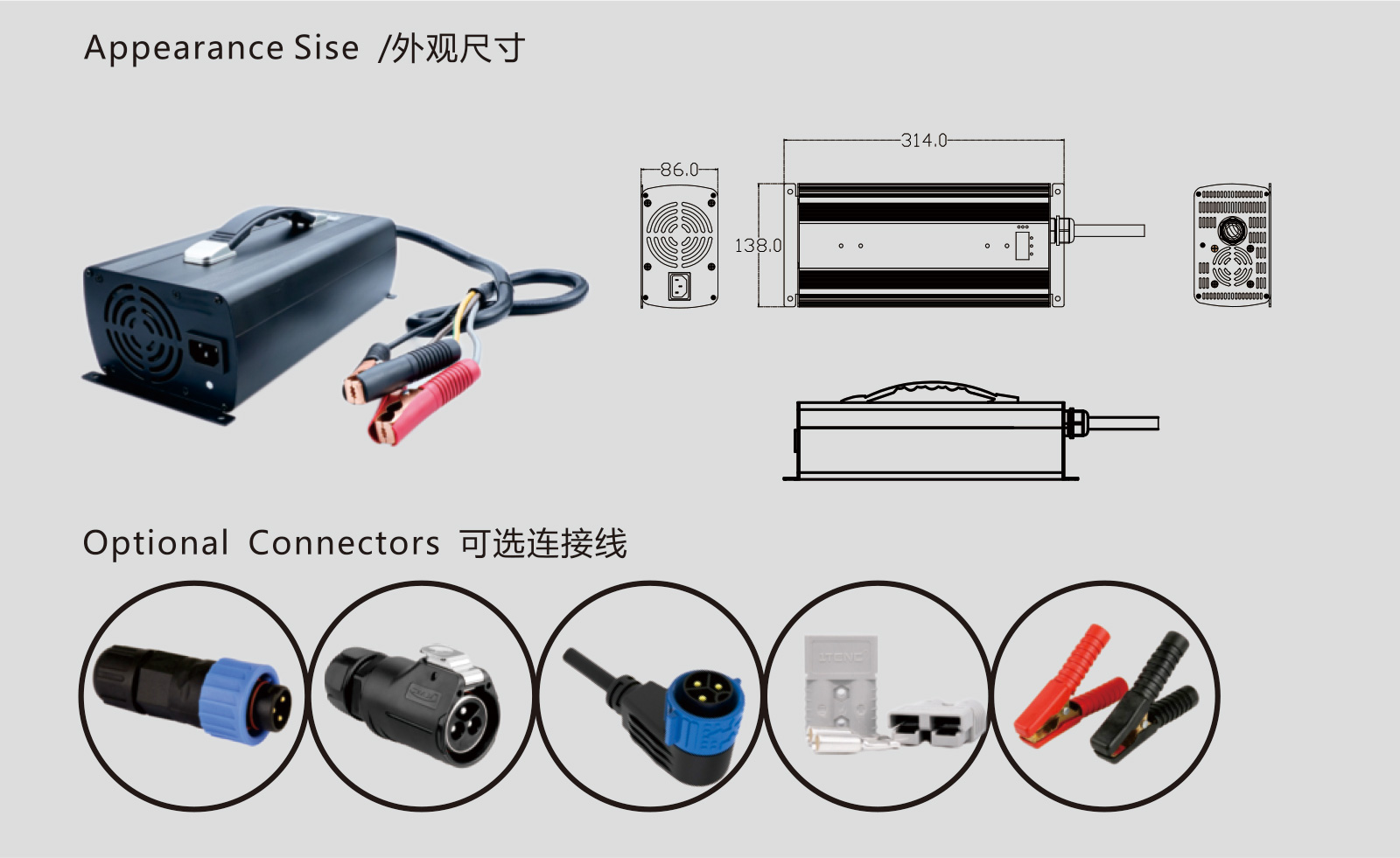

| Product size Dimensuons (mm) | 314*136*86 |
| Net Weight of Product | 3.5KG |
| Over current protection |
| Overvoltage protection |
| Short circuit protection |
| Reverse polarity protection |
| Anti reverse current protection |
| Anti spark protection |
| Specification and Model | Lithium iron phosphate/LiFePO4 | 29.2V70A |
43.8V47A | 58.4V35A | 73V28A |
87.6V24A |
| Triple/Litium | 29.4V70A | 42V50A | 54.6V35A | 71.4V28A |
84V24A |
|
| Lead acid/Lead acid | 24V70A | 36V50A | 48V35A | 60V28A | 72V24A |
