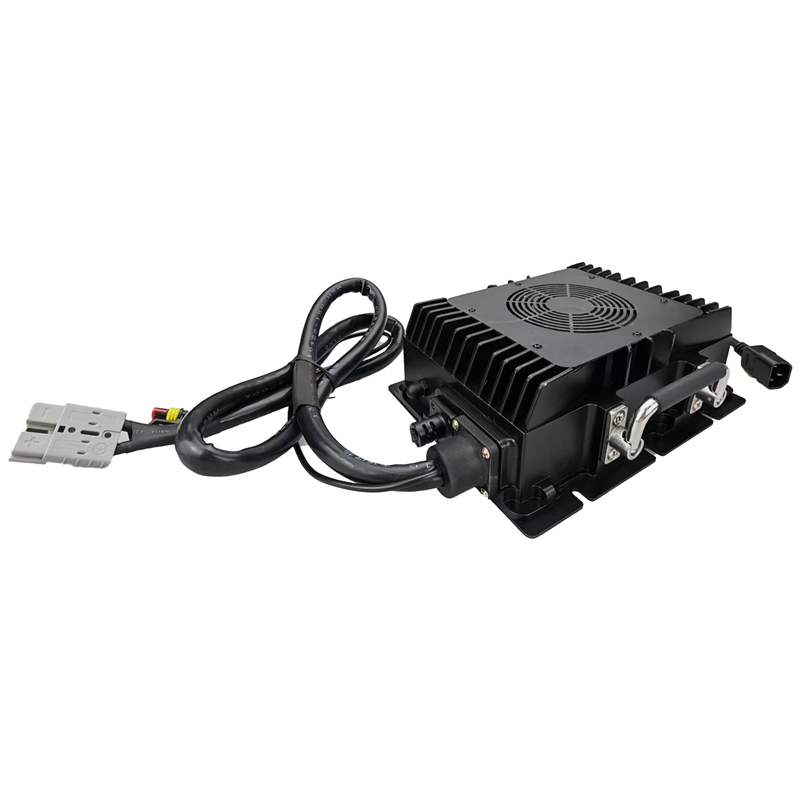

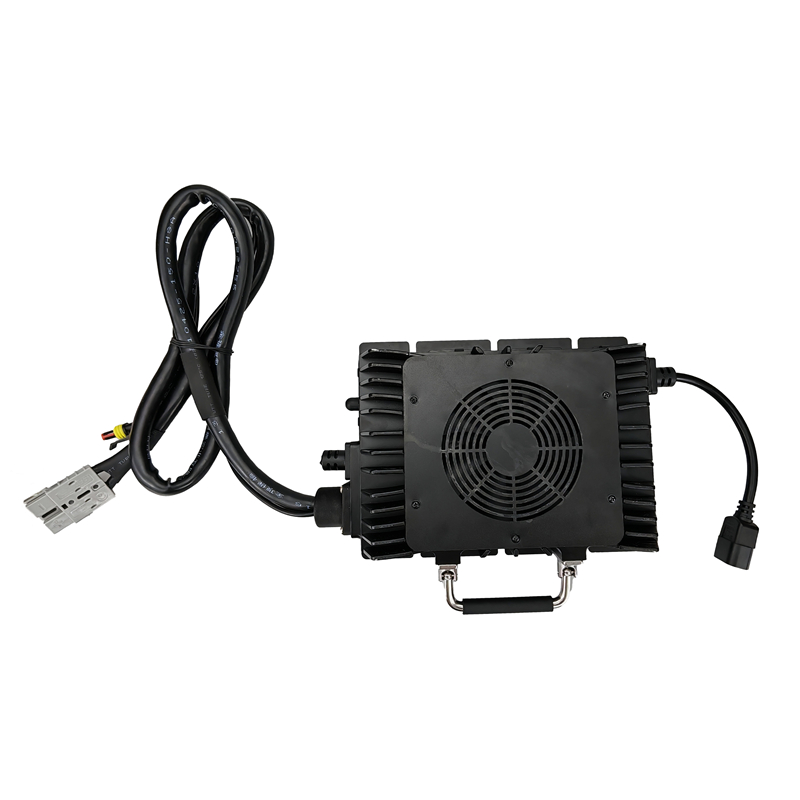

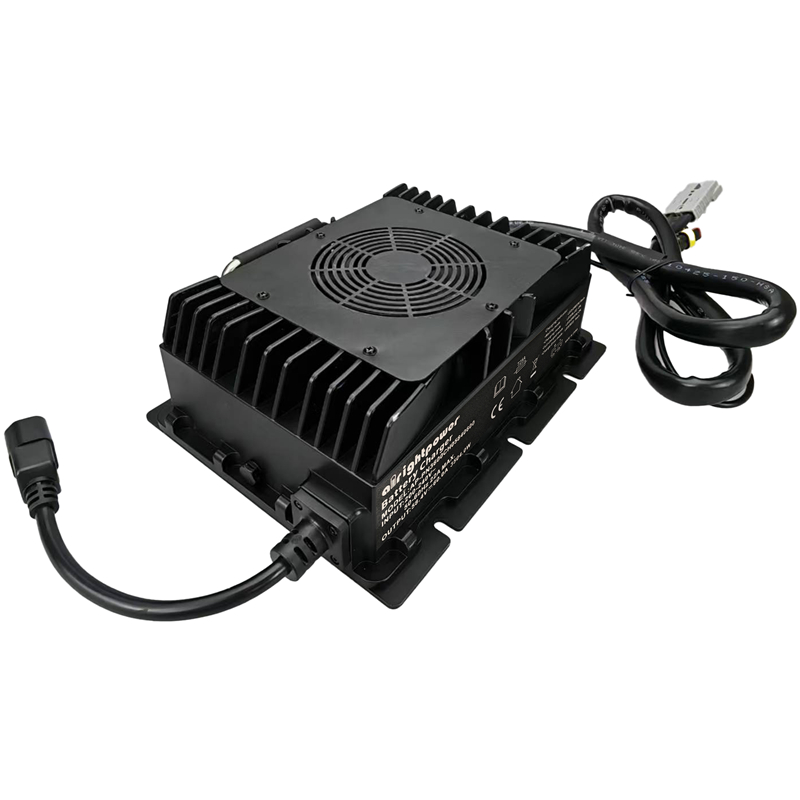

3600W waterproof aluminum shell charger

Model：24-72V 40-120A

Typical outputs: 12V120A, 24V100A, 36V80A, 48V60A, 60V48A, 72V40A

Protection: overcurrent protection, overvoltage protection, short circuit protection, reverse connection protection, battery open circuit protection

Safety certification: CE

Request A Quote
Technical indicators

Rated Input Voltage 200Vac-240Vac
Input Frequency 50/60 Hz
Input Current 16A MAX
Power Factor ≥0.95 Input 230Vac@ Full load
Output Voltage 12-90V
Output Current 0.1-120A
Full Load Efficiency ≥90% Input230Vac@Full load
Efficiency Support CAN 485
Operating Temperature -10°C~40°C
Storage Temperature -40°C~70°C
Waterproof class Ip67
Dimensions(mm) 256.6*200.6*92.1
Net Weight 5KG
Protection function

Over current protection
Overvoltage protection
Short circuit protection
Reverse polarity protection
Anti reverse current protection
Anti spark protection
Specification and model

Specification and Model Lithium iron phosphate/LiFePO4

14.6V120A

29.2V100A

 43.8V80A 58.4V60A 73V48A
 87.6V40A
Triple/Litium 12.6V120A 29.4V100A 42V80A 54.6V60A 71.4V48A
 84V40A
Lead acid/Lead acid 12V120A 24V100A 36V80A 48V60A 60V48A 72V40A

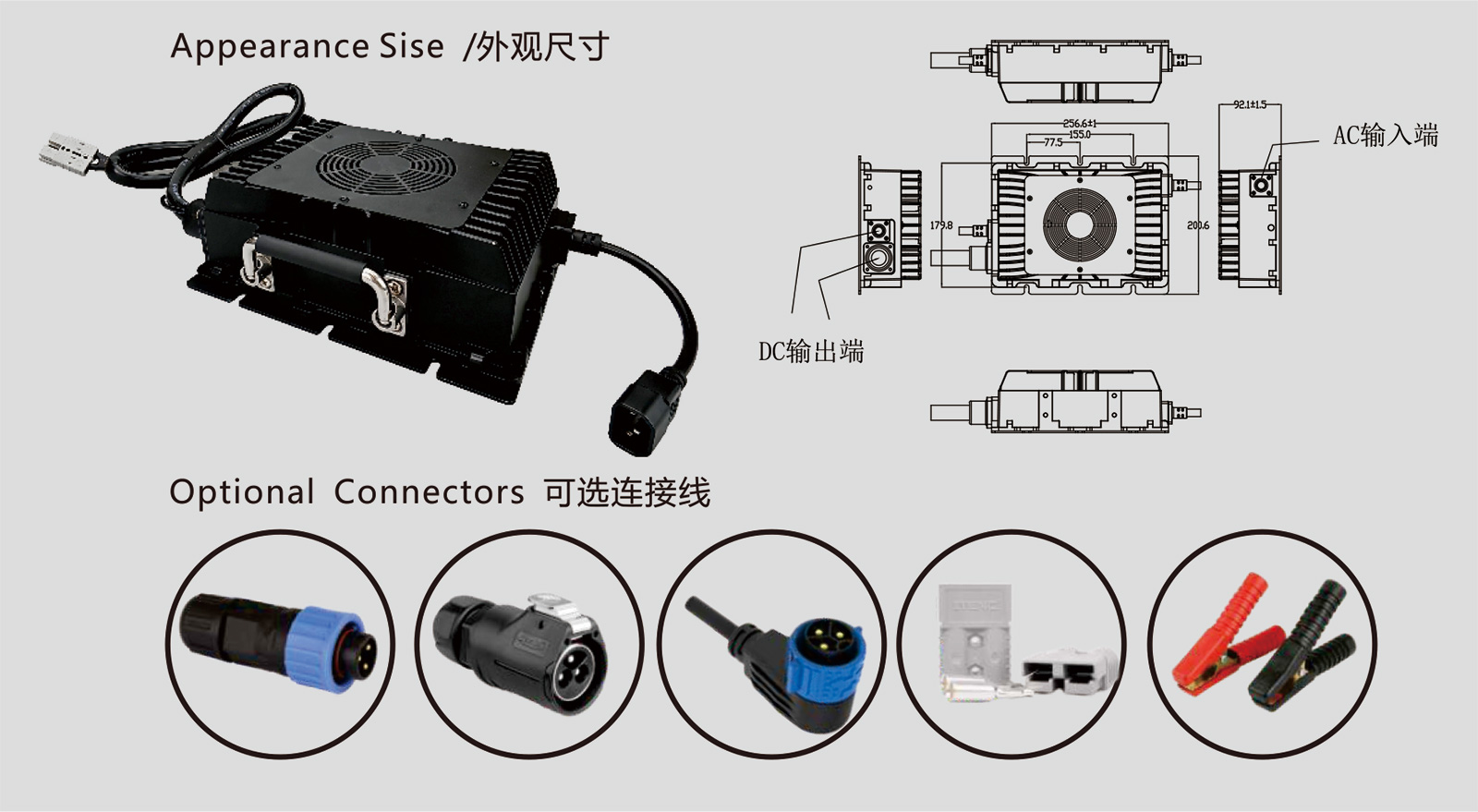

Product size


Product certification

UL.svgETL.svgFCC.svgCE.svgGS.svgUKCA.svgPSE.svgKC.svgSAA.svg3CC.svgCQC.svg
