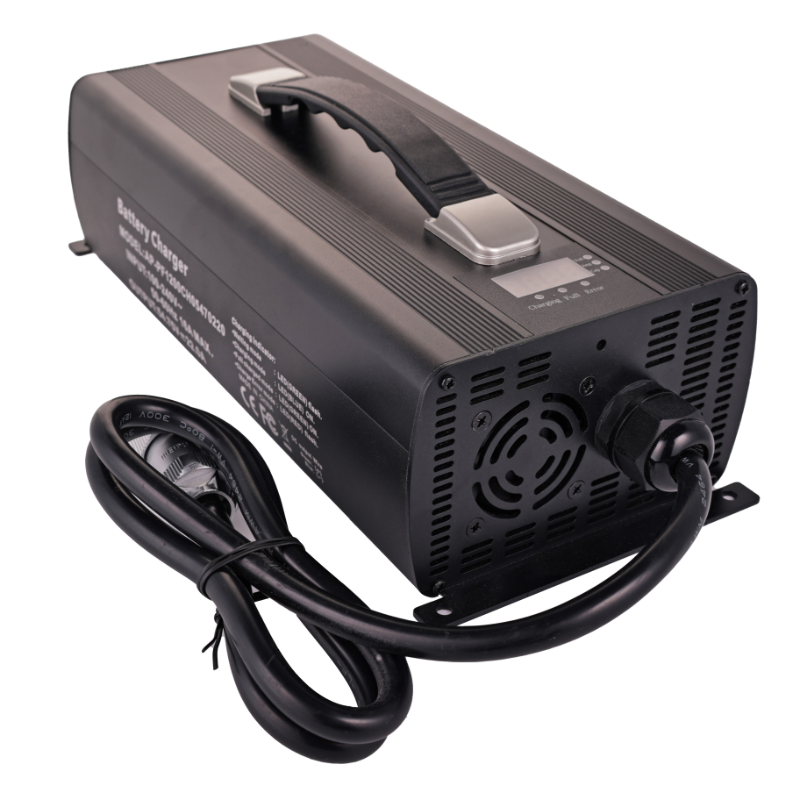

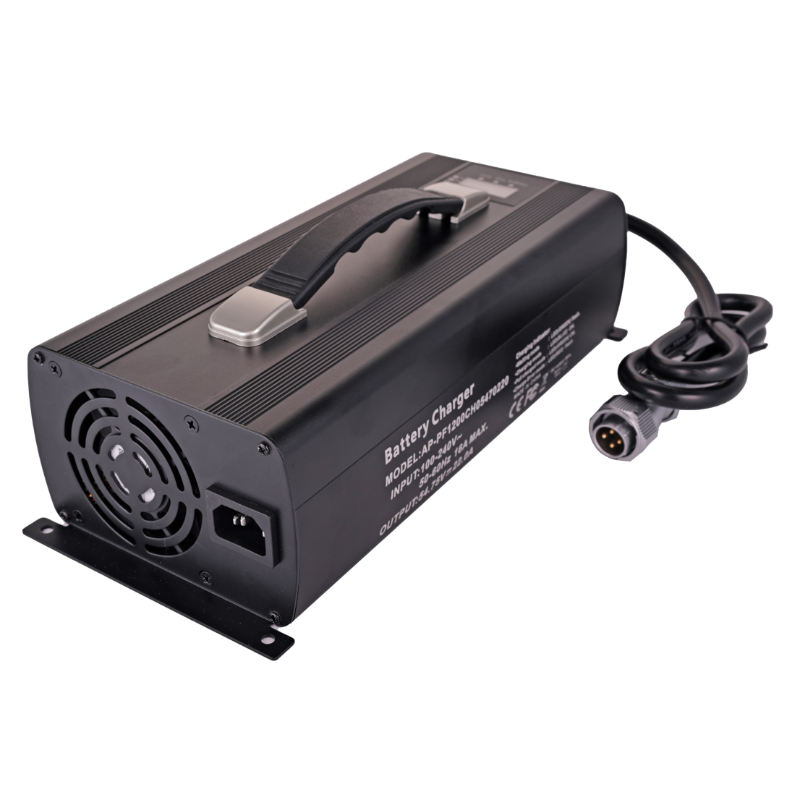

Model：24-72V 24-70A
Typical outputs: 24V70A, 36V50A, 48V35A, 60V28A, 72V24A
Protection: overcurrent protection, overvoltage protection, short circuit protection, reverse connection protection, battery open circuit protection
Safety certification: CE
| Rated Input Voltage | 200Vac-240Vac |
| Input Frequency | 50/60 Hz |
| Input Current | 16A MAX |
| Power Factor | ≥0.95 Input 230Vac@ Full load |
| Output Voltage | 12-90V |
| Output Current | 0.1-30A |
| Full Load Efficiency | ≥90% Input230Vac@Full load |
| Efficiency | Support CAN 485 |
| Operating Temperature | -10°C~40°C |
| Storage Temperature | -40°C~70°C |
| Waterproof class | Ip67 |
| Dimensions(mm) | 292*116*80 |
| Net Weight | 3.2KG |
| 过流保护Over current protection |
| 过压保护Over voltage protection |
| 短路保护Short circuit protection |
| 反接保护Reverse polarity protection |
| 防倒灌保护anti- revert current protection |
| 防打火保护anti-spark protection |
| 规格型号 Model | 磷酸铁锂/LiFePO4 | 43.8V30A | 58.4V30A |
73V24A |
87.6V20A |
| 三元/Lithium | 42V30A | 54.6V30A |
71.4V24A |
84V20A |
|
| 铅酸/Lead-acid | 36V30A | 48V30A | 60V24A | 72V20A |
