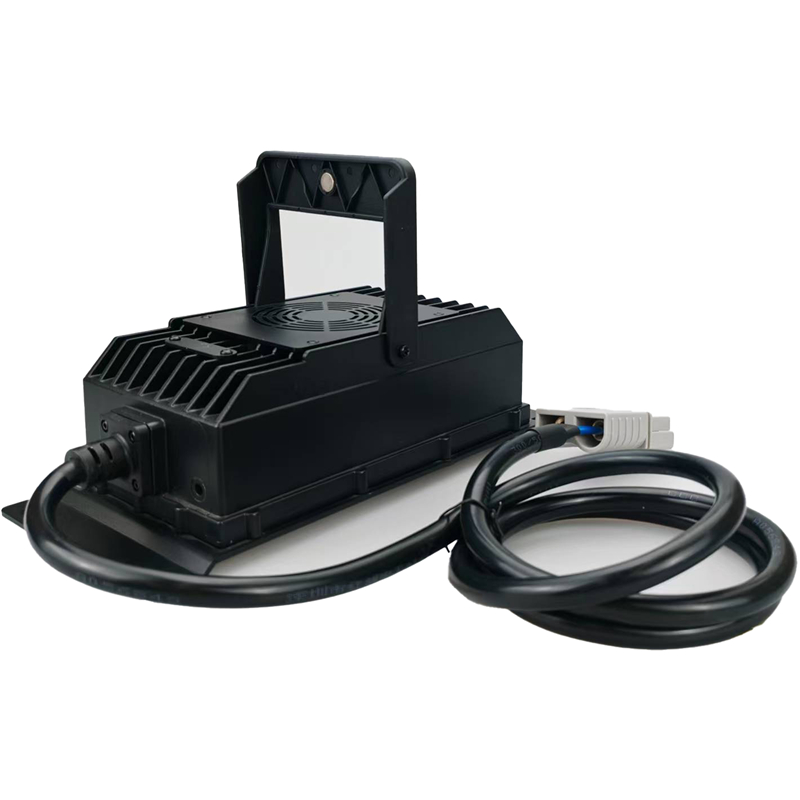

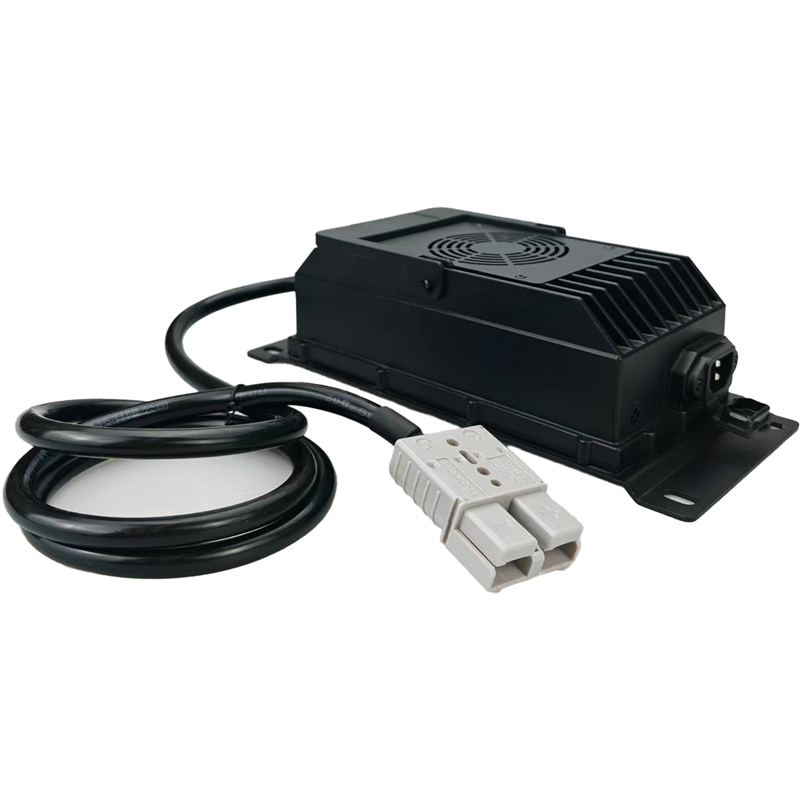

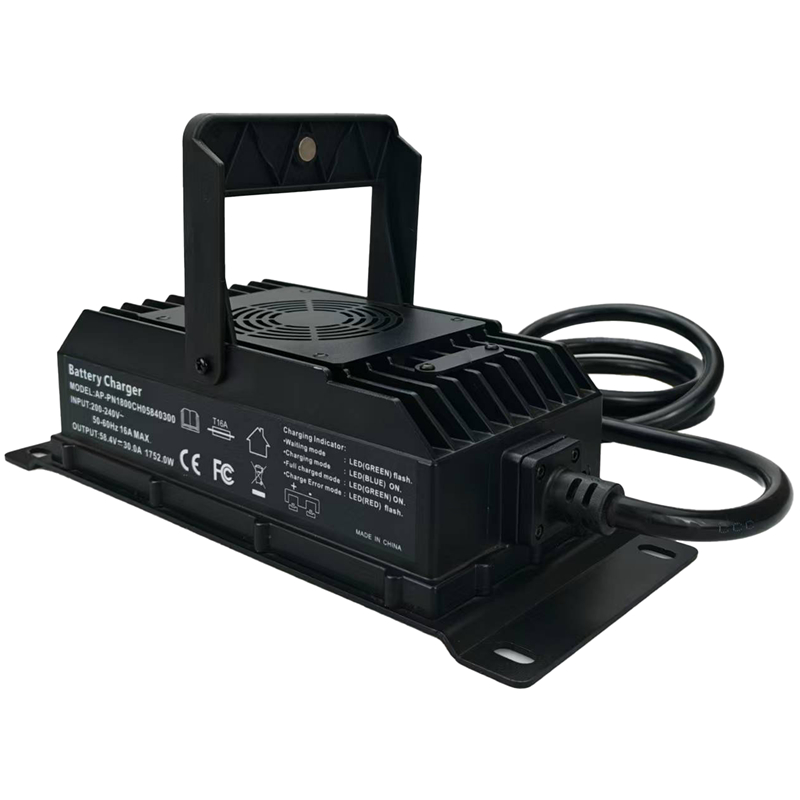

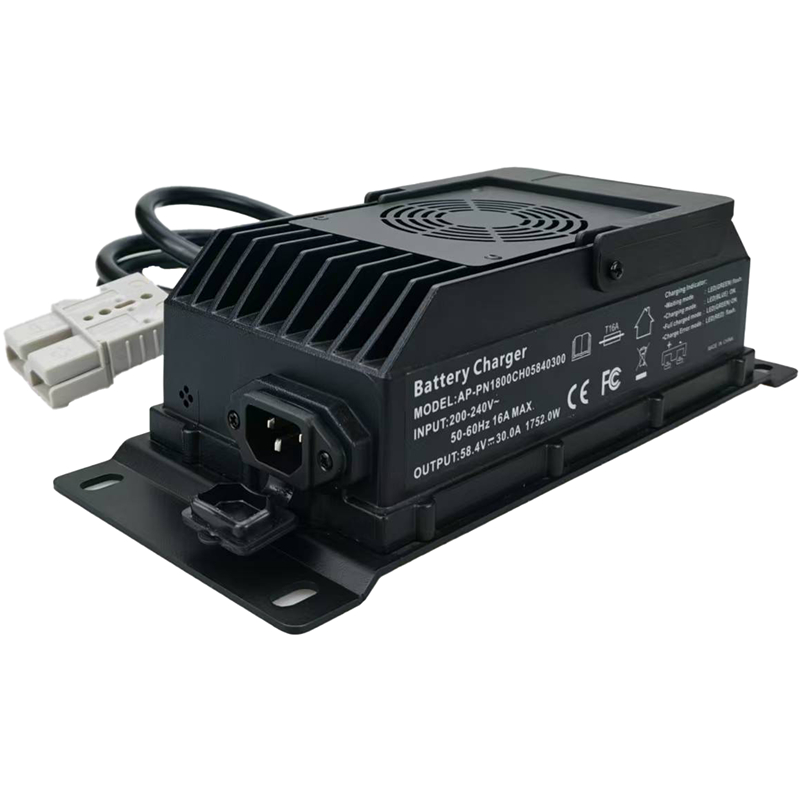

Model：36-72V 20-30A
Typical outputs: 36V30A, 48V30A, 60V24A, 72V20A
Protection: overcurrent protection, overvoltage protection, short circuit protection, reverse connection protection, battery open circuit protection
Safety certification: CE
| Rated Input Voltage | 200Vac-240Vac |
| Input Frequency | 50/60 Hz |
| Input Current | 16A MAX |
| Power Factor | ≥0.95 Input 230Vac@ Full load |
| Output Voltage | 12-90V |
| Output Current | 0.1-30A |
| Full Load Efficiency | ≥90% Input230Vac@Full load |
| Efficiency | Support CAN 485 |
| Operating Temperature | -10°C~40°C |
| Storage Temperature | -40°C~70°C |
| Waterproof class | Ip67 |

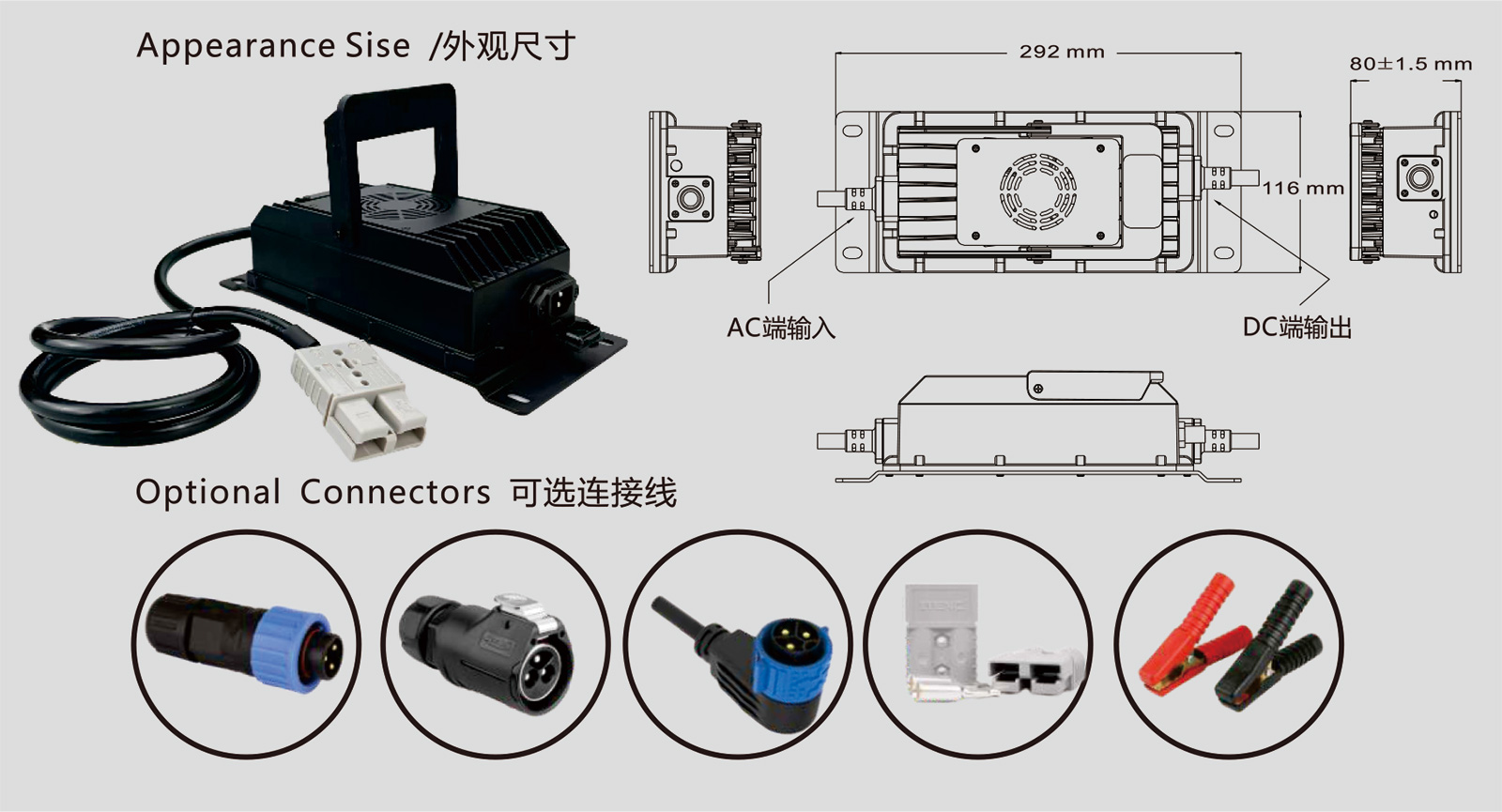

| Dimensions(mm) | 292*116*80 |
| Net Weight | 3.2KG |
| Over current protection |
| Overvoltage protection |
| Short circuit protection |
| Reverse polarity protection |
| Anti reverse current protection |
| Anti spark protection |
| Specification and Model | Lithium iron phosphate/LiFePO4 | 43.8V30A | 58.4V30A | 73V24A |
87.6V20A |
| Triple/Litium | 42V30A | 54.6V30A | 71.4V24A |
84V20A |
|
| Lead acid/Lead acid | 36V30A | 48V30A | 60V24A | 72V20A |
