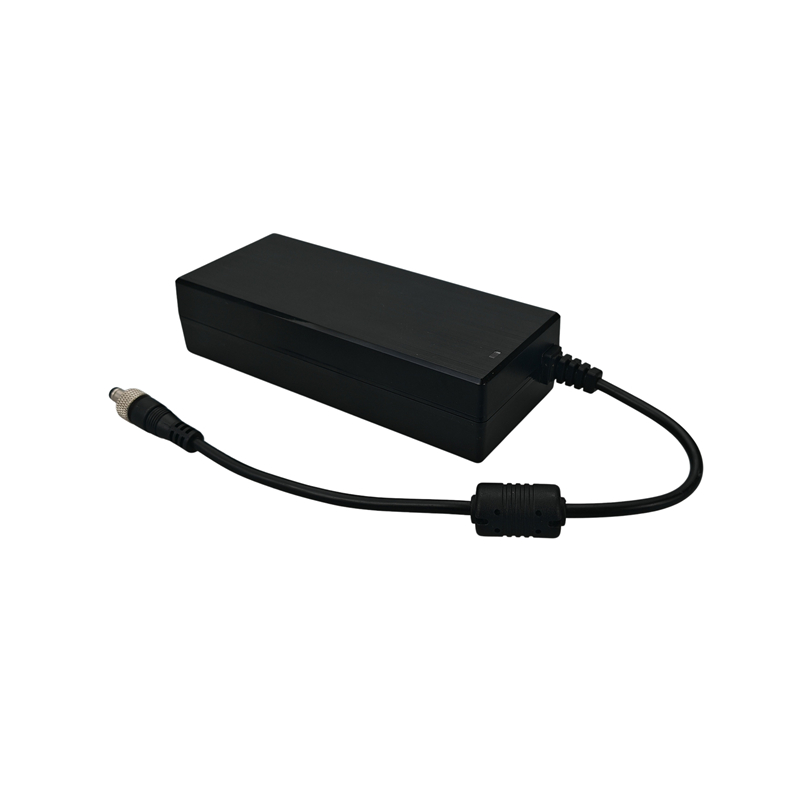

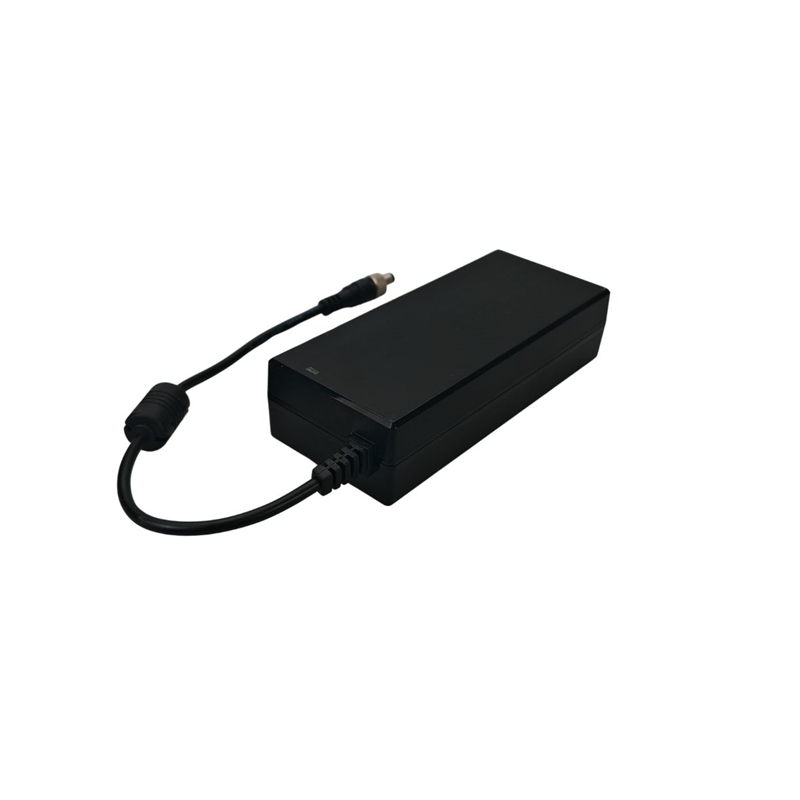

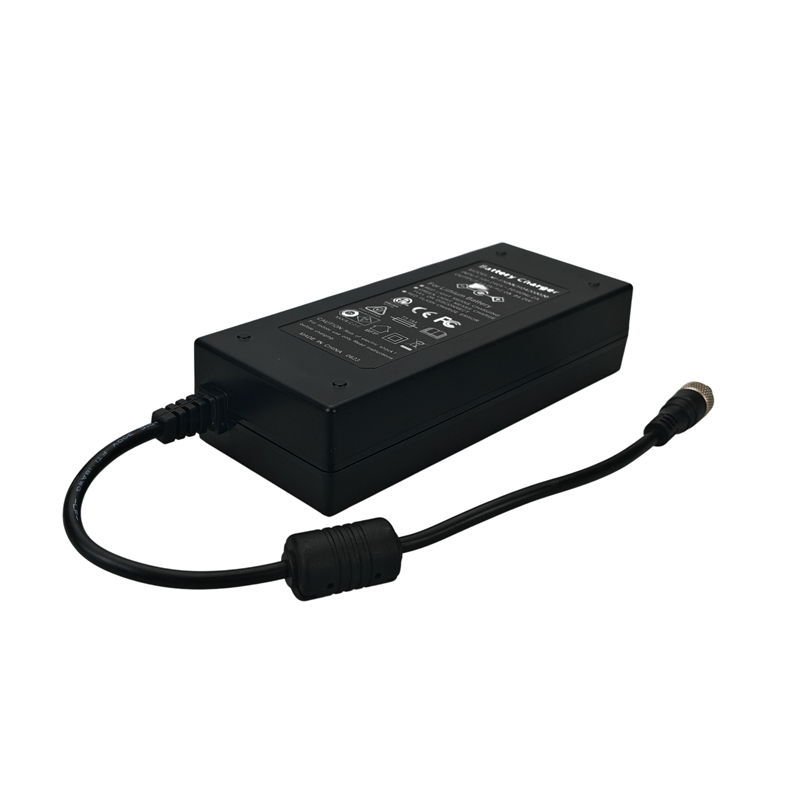

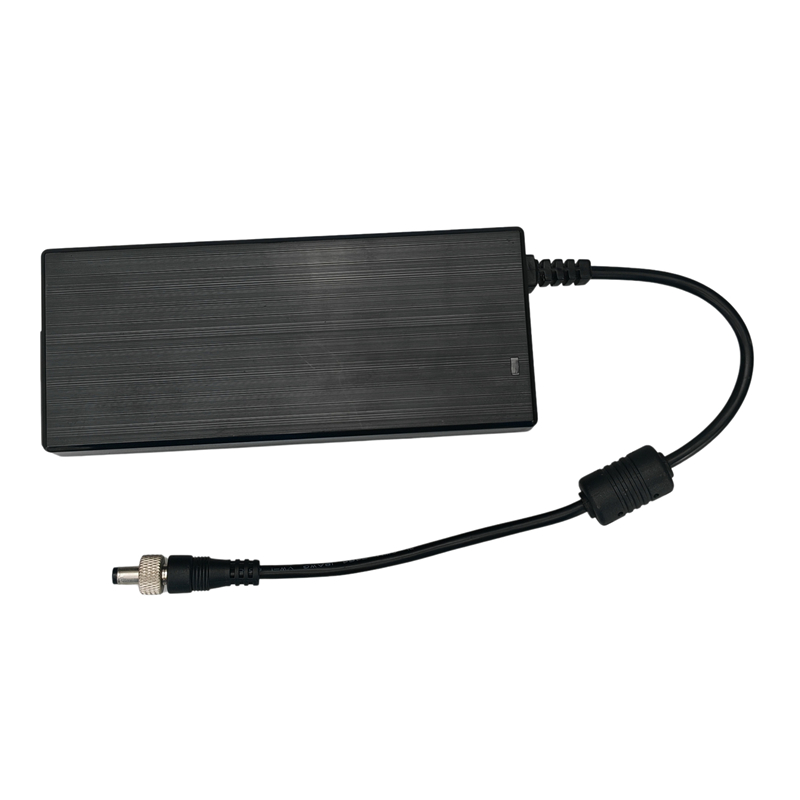

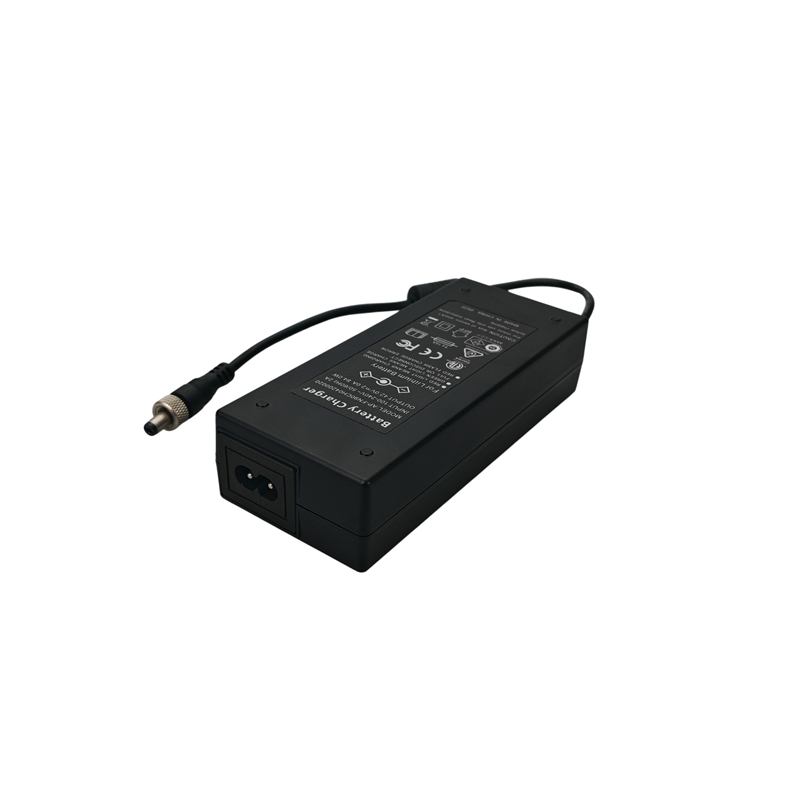

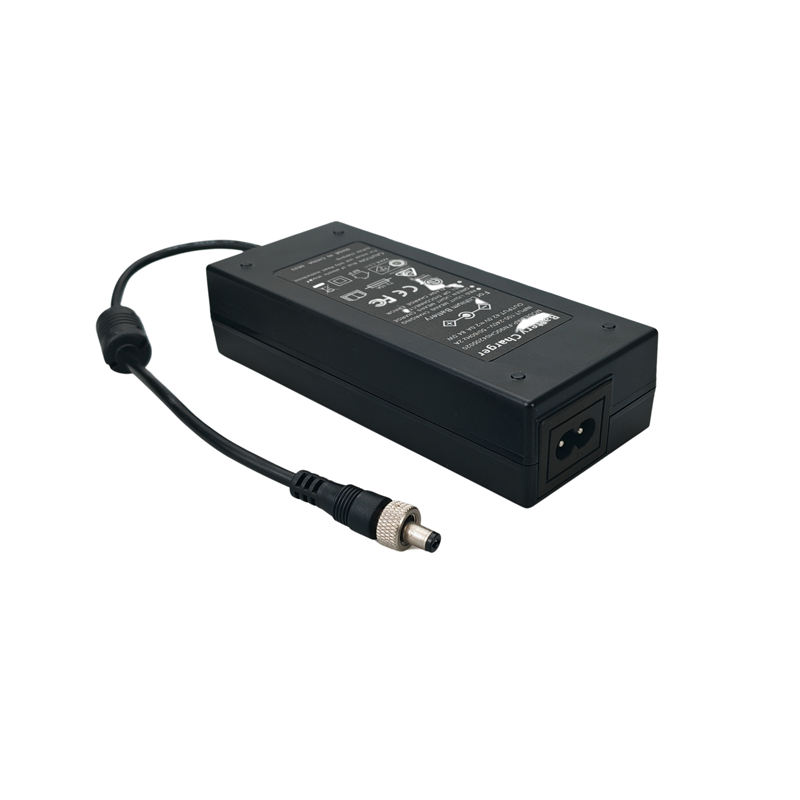

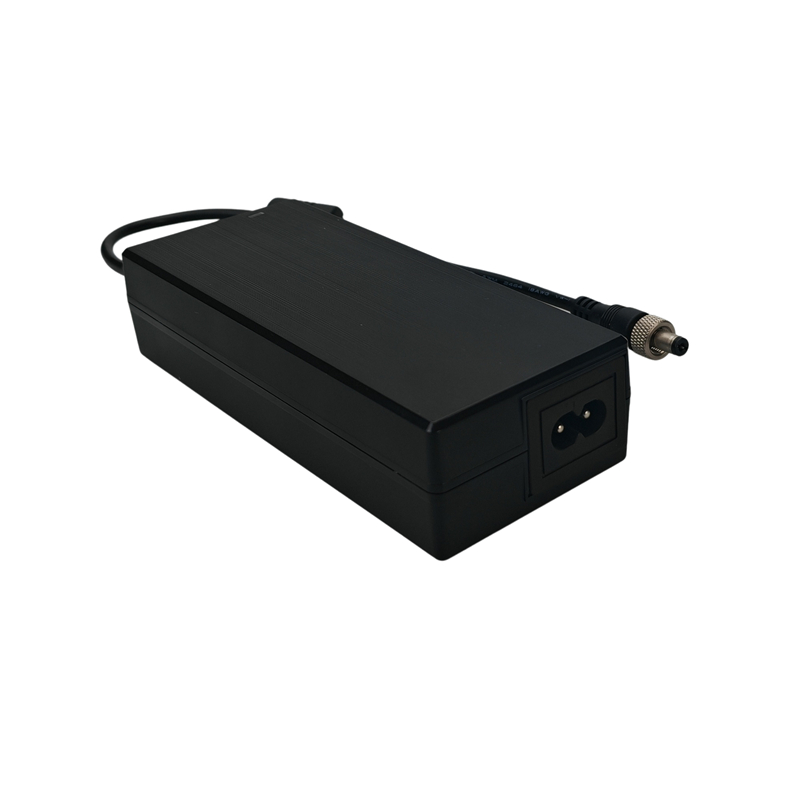

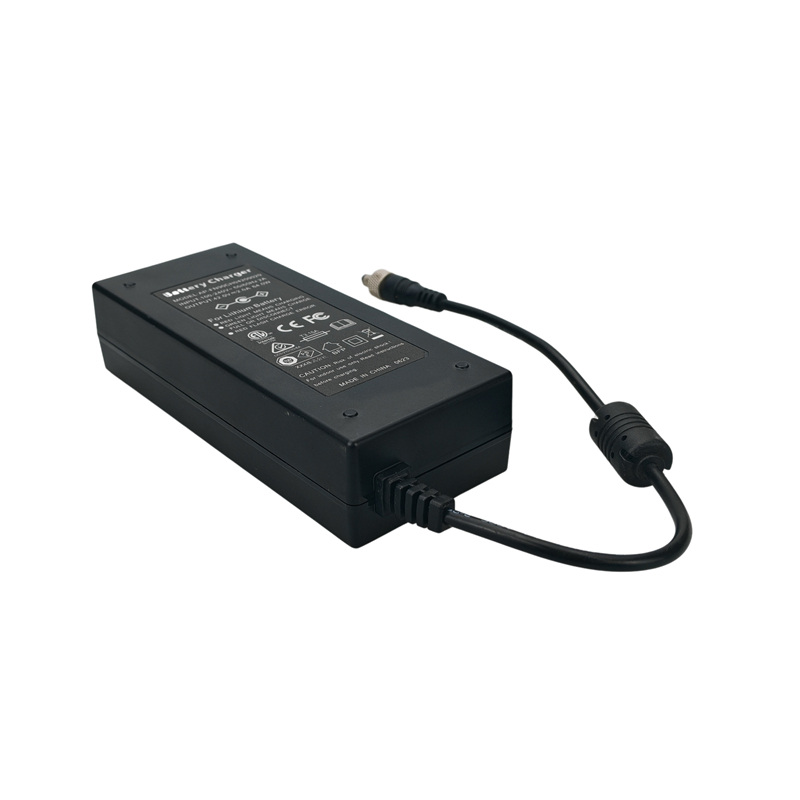

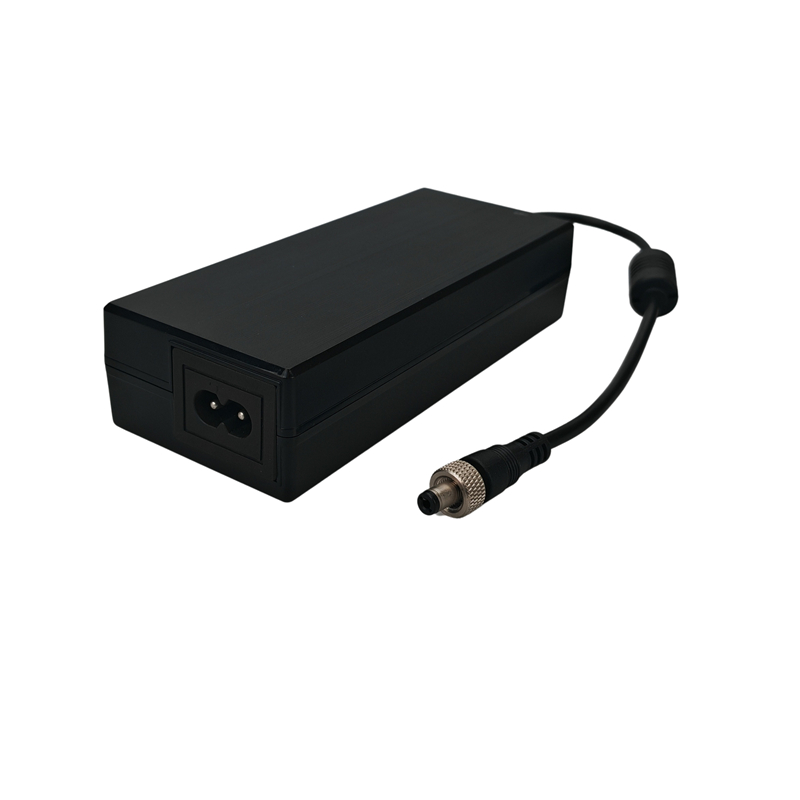

Model：12-48V 1.5-6A
Typical outputs: 12V6A, 24V 3A, 36V2A, 48V1.5A
Protection: overcurrent protection, overvoltage protection, short circuit protection, reverse connection protection, battery open circuit protection
Safety certification: CE
| Rated Input Voltage | 100Vac-240Vac |
| Input Frequency | 50/60 Hz |
| Input Current | 2A MAX |
| Power Factor | ≥0.55 Input 230Vac@ Full load |
| Output Voltage | 10-58.8V |
| Output Current | 0.1-6A |
| Full Load Efficiency | ≥85% Input230Vac@Full load |
| Operating Temperature | -10°C~40°C |
| Storage Temperature | -40°C~70°C |

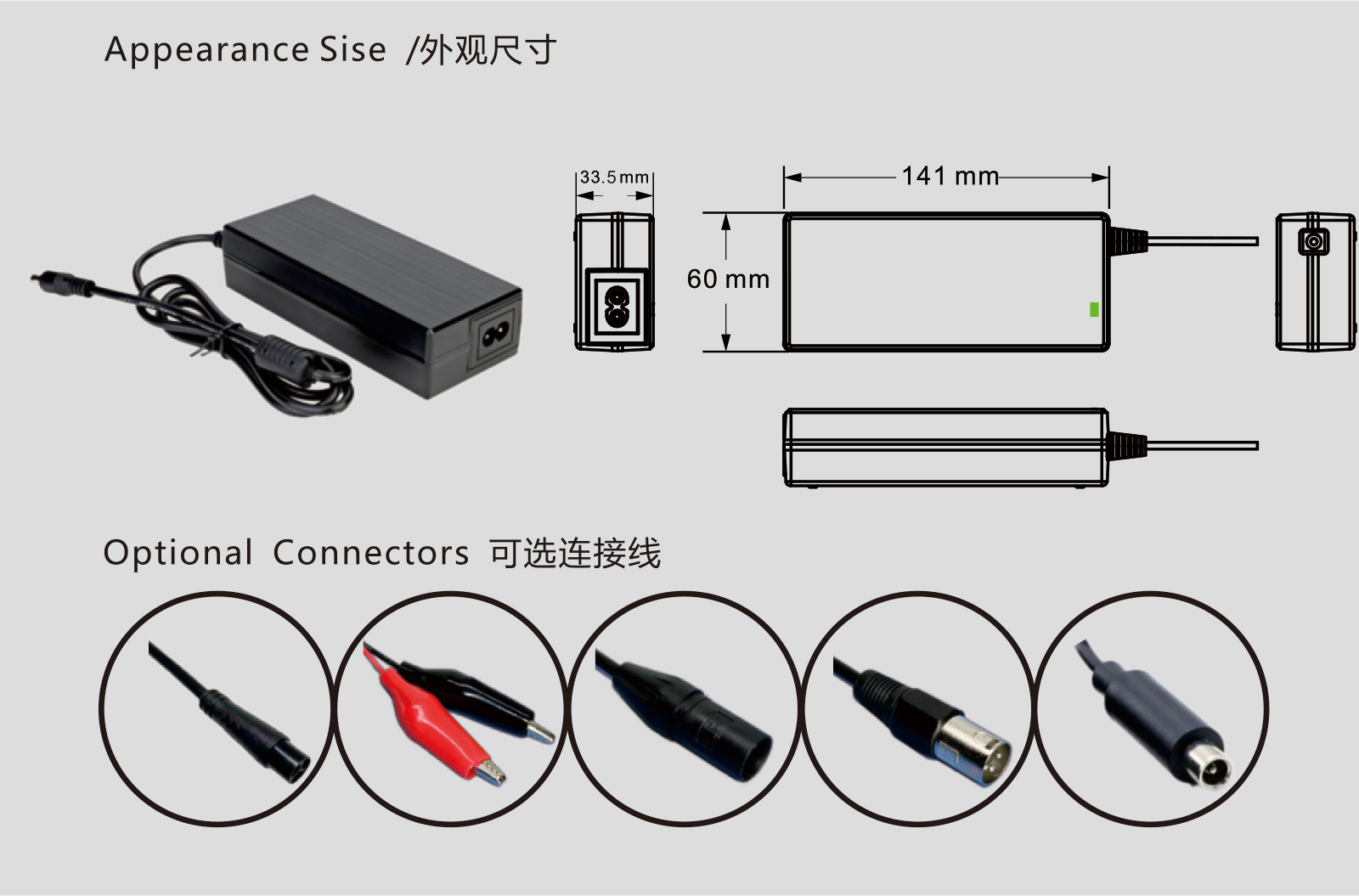

| Product Dimensions (mm) | 141.6*60*33.5 |
| Net Weight | 0.45KG |
| Over current protection |
| Overvoltage protection |
| Short circuit protection |
| Reverse polarity protection |
| Anti reverse current protection |
| Anti spark protection |
| Specification and Model | Lithium iron phosphate/LiFePO4 | 14.6V6A | 29.2V3A | 43.8V2A | 58.4V1.5A |
| Triple/Litium | 12.6V6A | 29.4V3A | 42V2A | 54.6V1.5A | |
| Lead acid/Lead acid | 12V6A | 24V3A | 36V2A | 48V1.5A |
