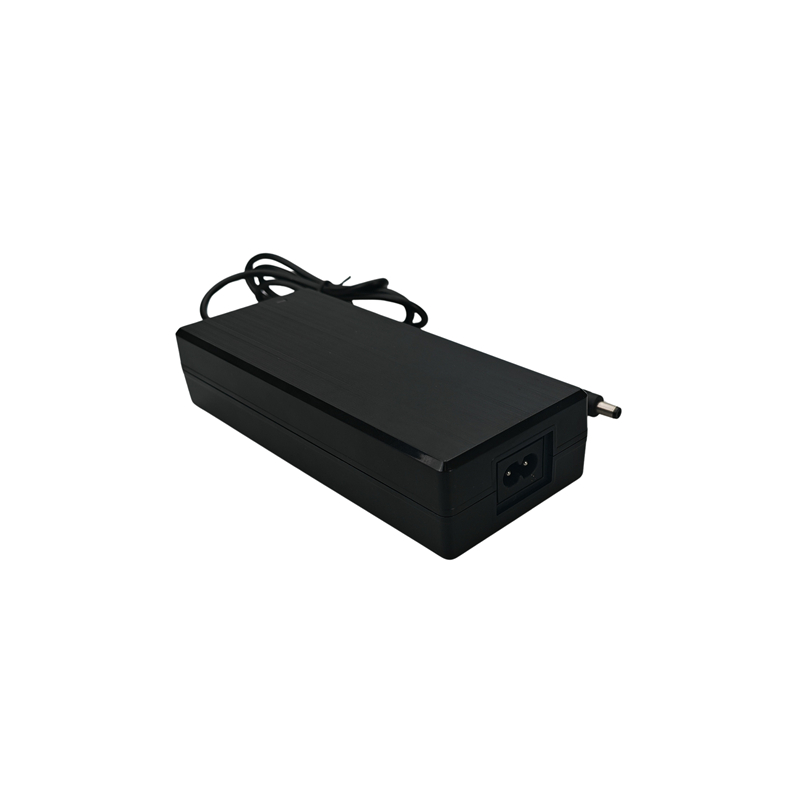

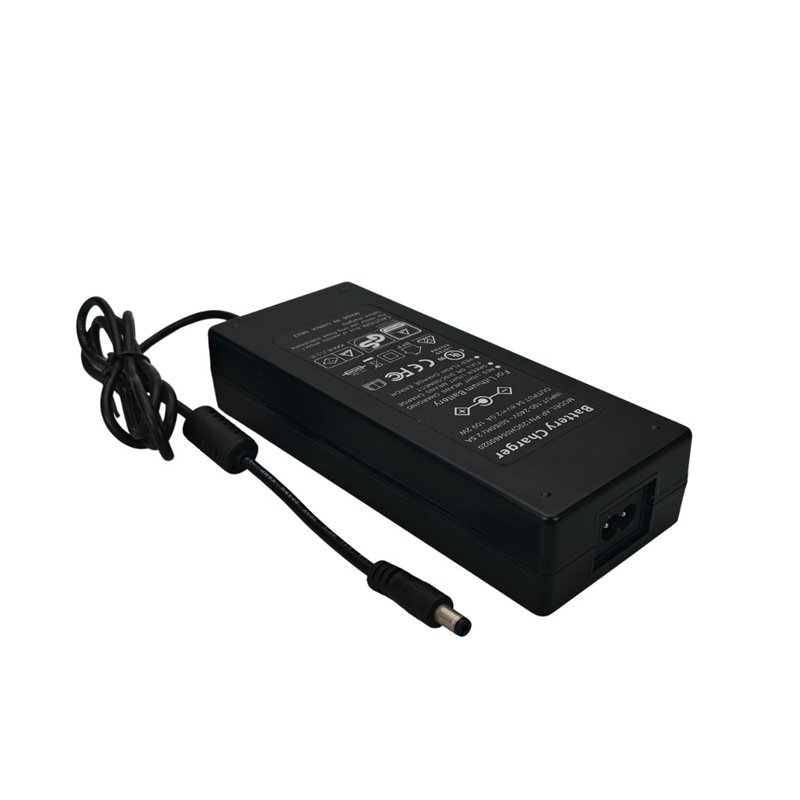

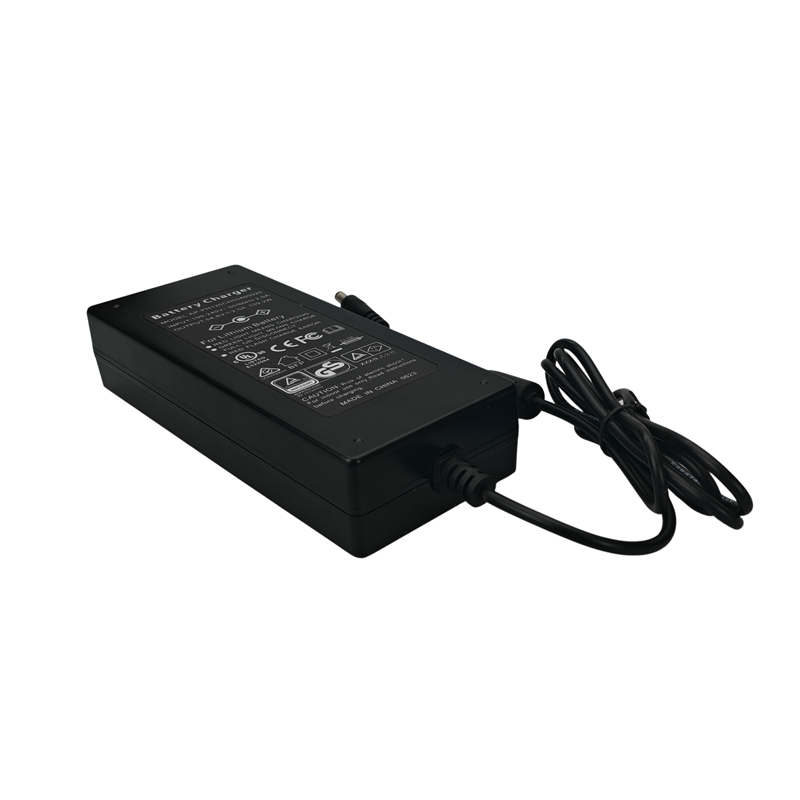

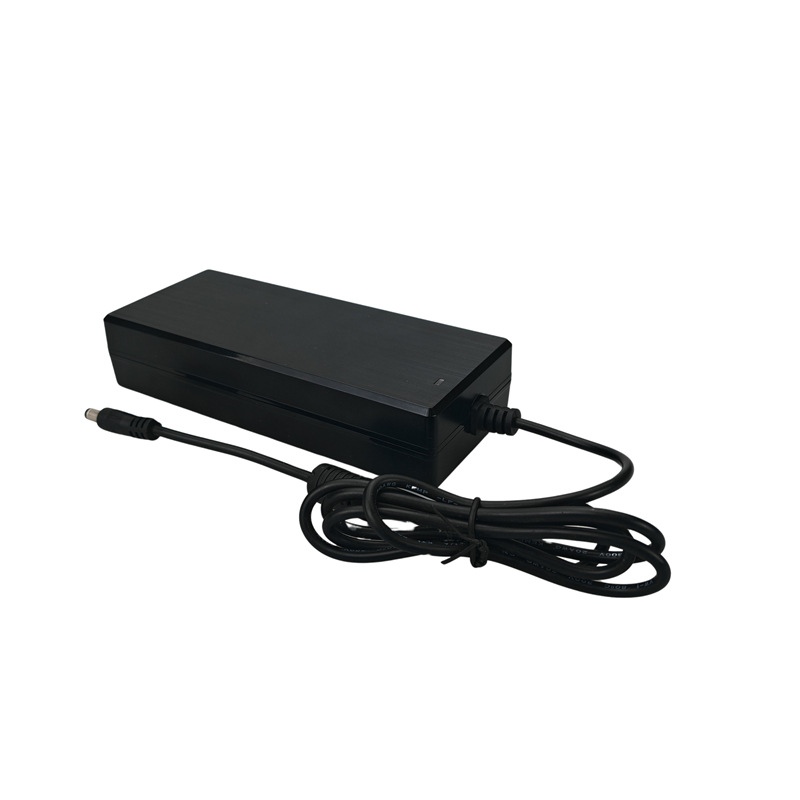

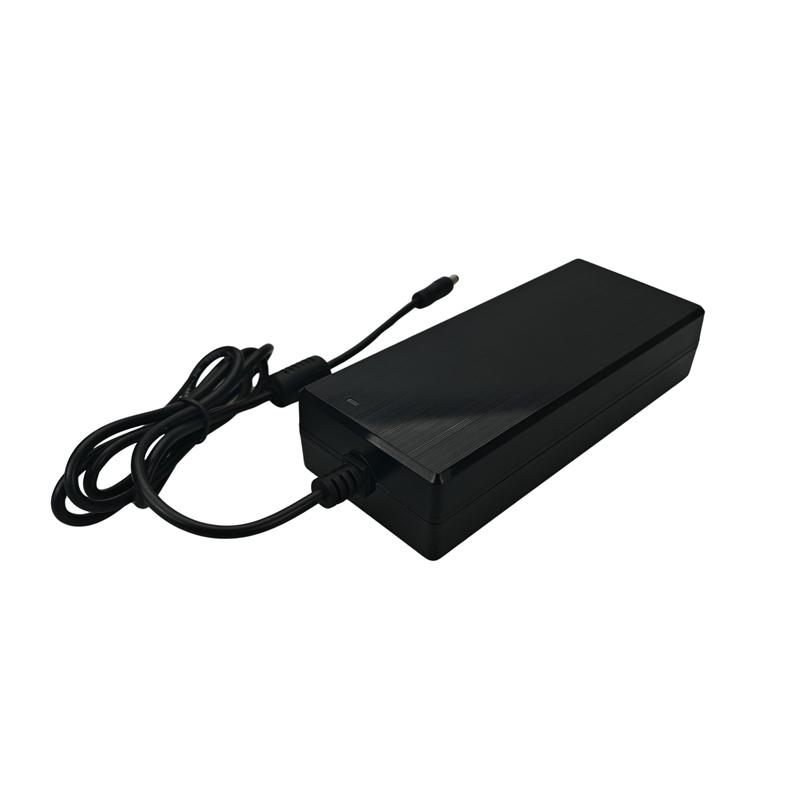

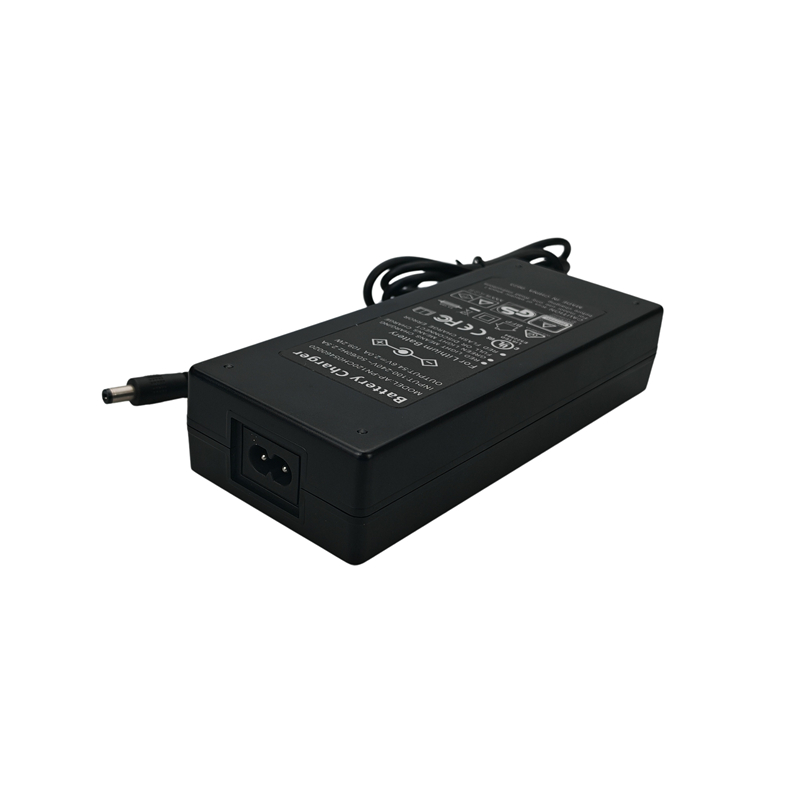

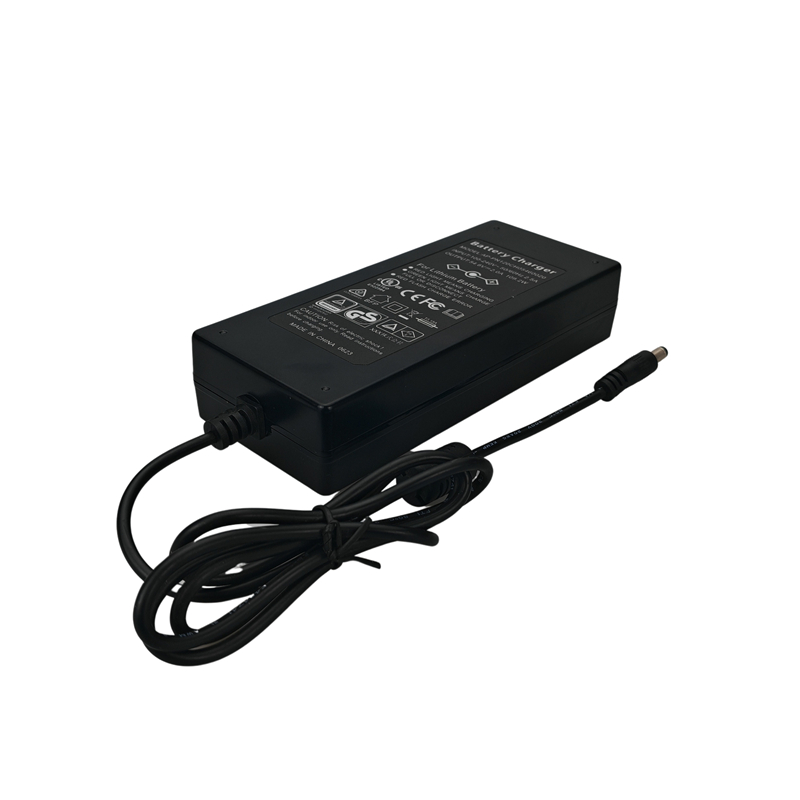

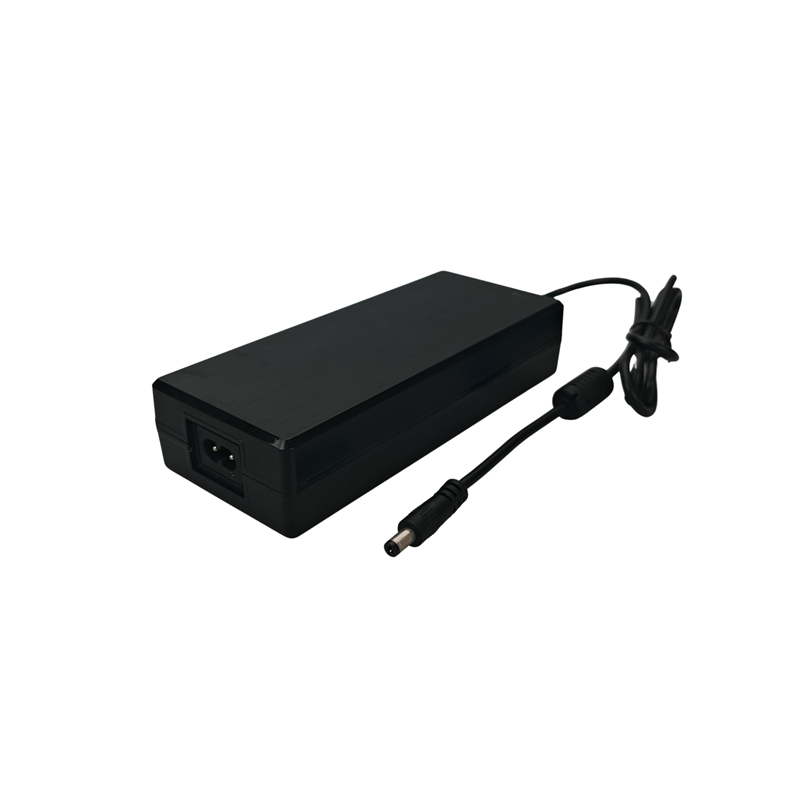

Model：12-48V 2-7A
Typical outputs: 12V7A, 24V 4A, 36V3A, 48V2A
Protection: overcurrent protection, overvoltage protection, short circuit protection, reverse connection protection, battery open circuit protection
Safety certification: CE
| Rated Input Voltage | 100Vac-240Vac |
| Input Frequency | 50/60 Hz |
| Input Current | 2.5A MAX |
| Power Factor | ≥0.55 Input 230Vac@ Full load |
| Output Voltage | 10-88V |
| Output Current | 0.1-7A |
| Full Load Efficiency | ≥85% Input230Vac@Full load |
| Operating Temperature | -10°C~40°C |
| Storage Temperature | -40°C~70°C |

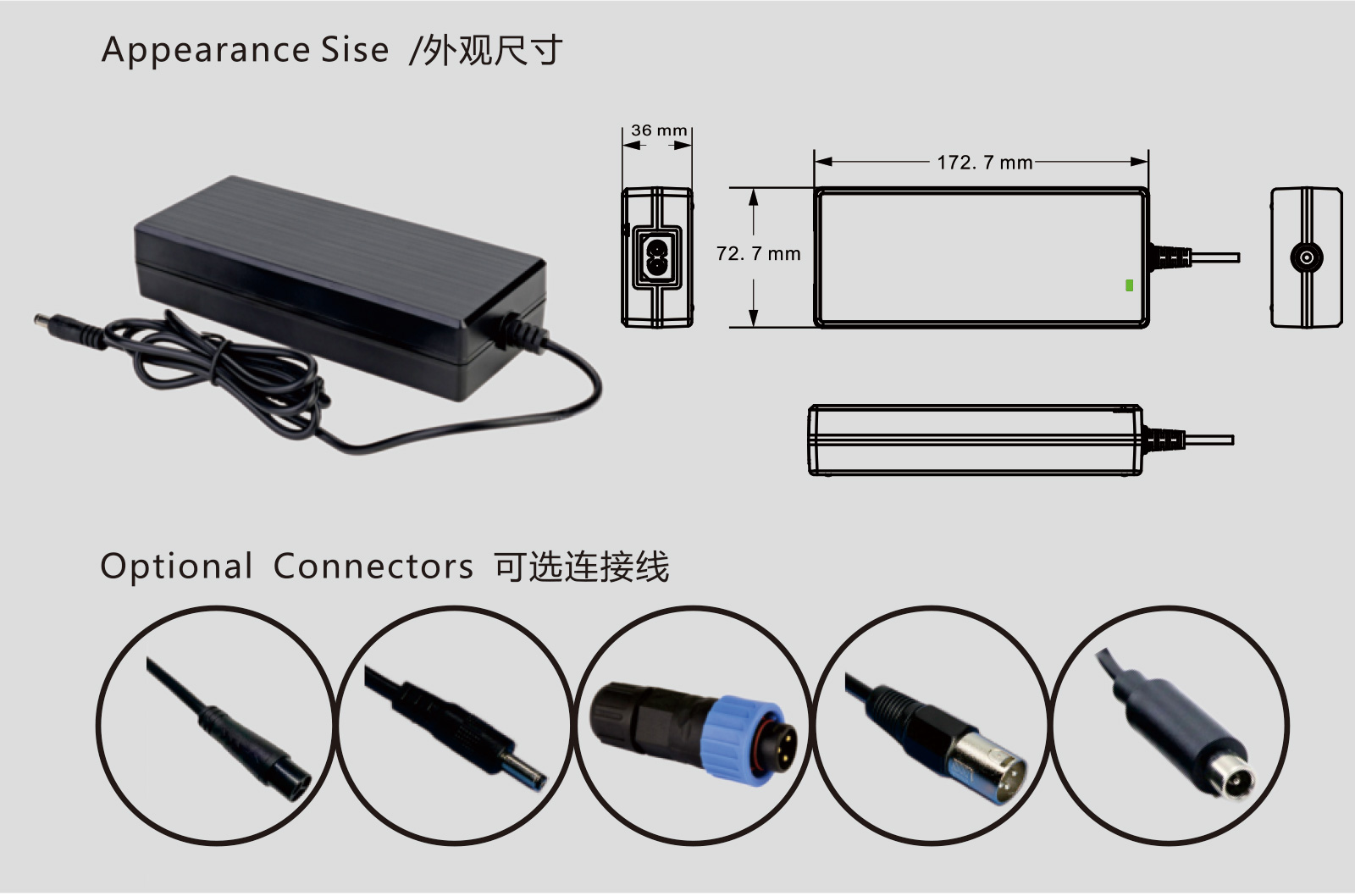

| Product Dimensions (mm) | 172.7*72.7*36 |
| Net Weight | 0.6KG |
| Over current protection |
| Overvoltage protection |
| Short circuit protection |
| Reverse polarity protection |
| Anti reverse current protection |
| Anti spark protection |
| Specification and Model | Lithium iron phosphate/LiFePO4 | 14.6V7A | 29.2V4A | 43.8V3A | 58.4V2A |
| Triple/Litium | 12.6V7A | 29.4V4A | 42V3A | 54.6V2A | |
| Lead acid/Lead acid | 12V7A | 24V4A | 36V3A | 48V2A |
