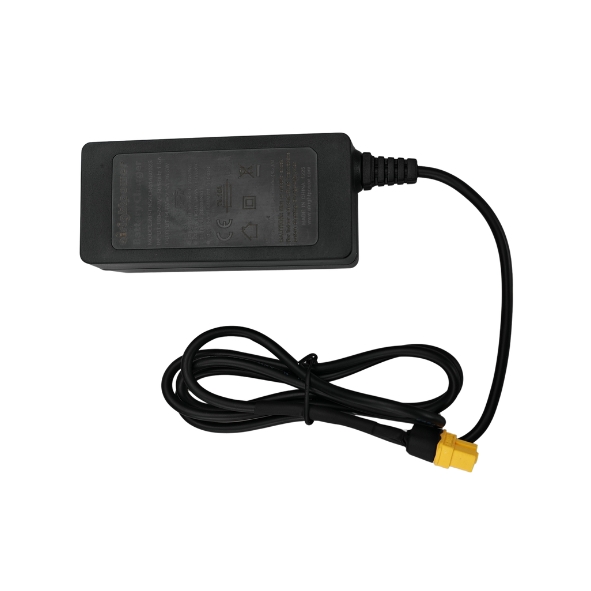

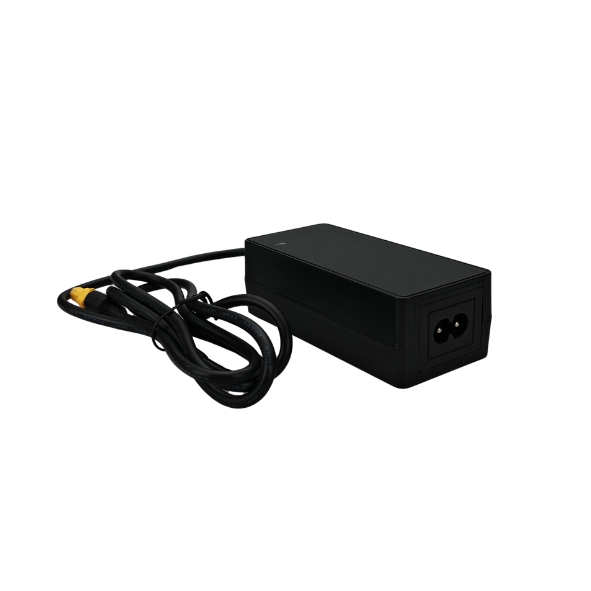

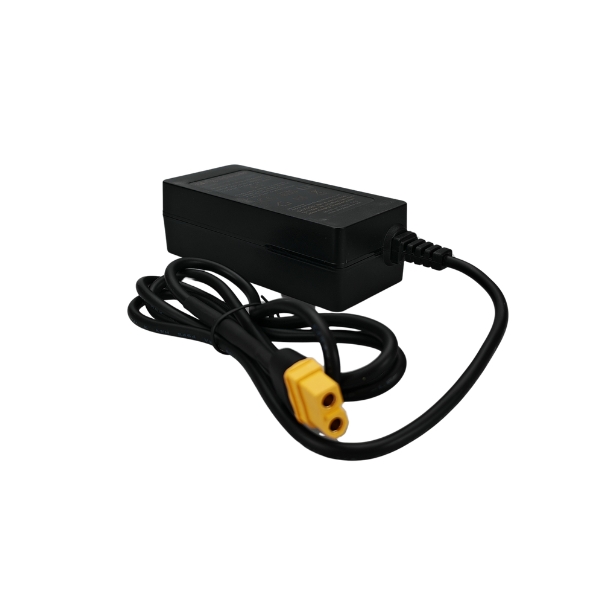

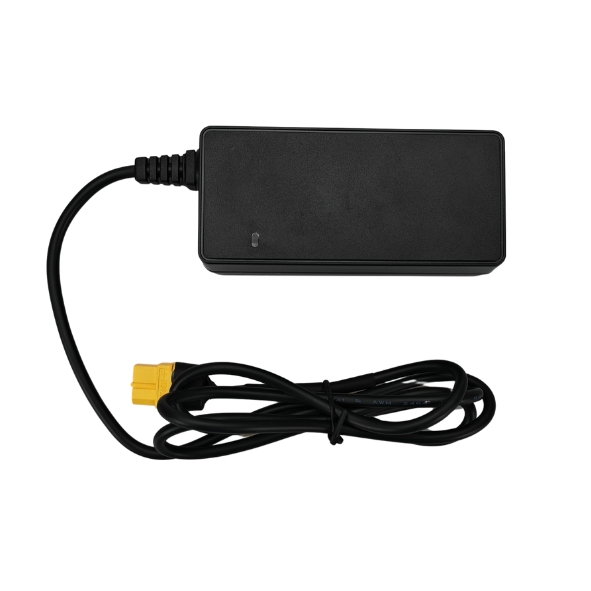

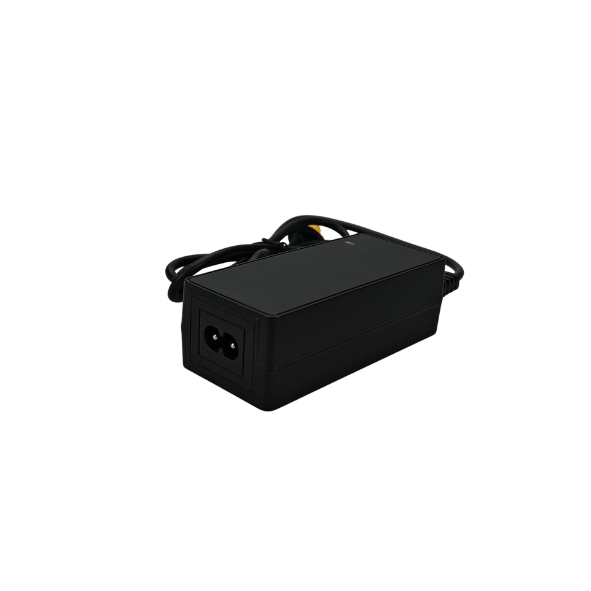

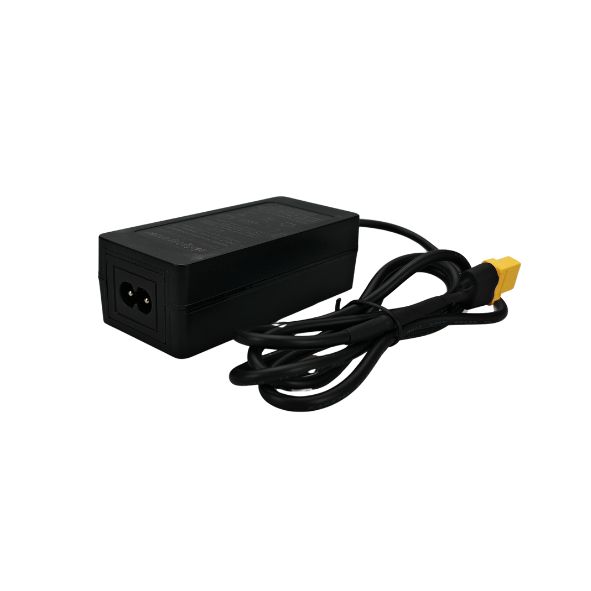

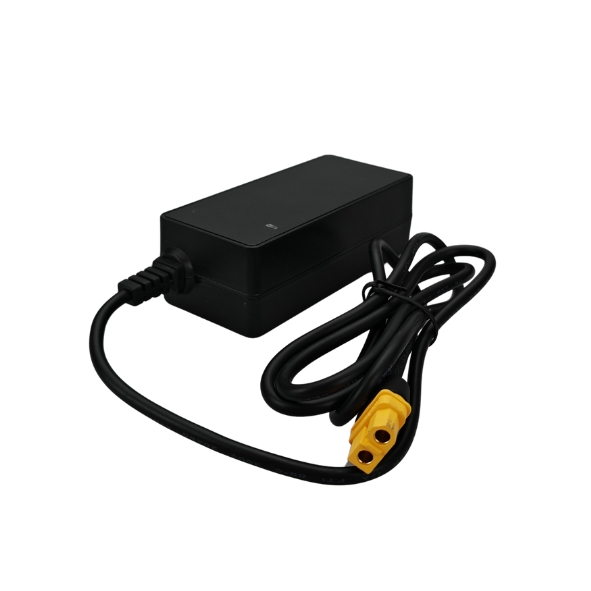

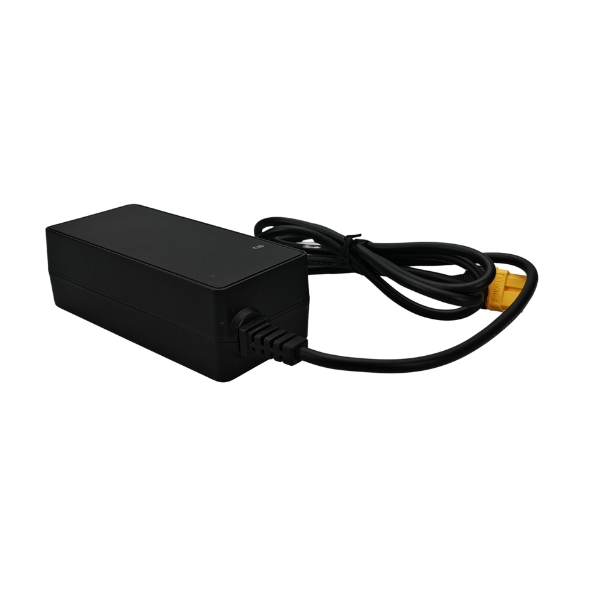

Model：12-58.8V 0.1-3A
Typical outputs: 12V3A, 24V1.5A, 36V1A, 48V0.8A
Protection: overcurrent protection, overvoltage protection, short circuit protection, reverse connection protection, battery open circuit protection
Safety certification: CE
| Rated input voltage | 100Vac-240Vac |
| Input Frequency | 50/60 Hz |
| Input current | 1.5A MAX |
| Power Factor | ≥0.5 Input 230Vac@ Full load |
| Output Voltage | 12-58.8V |
| Output current Curren | 0.1-3A |
| Full Load Efficiency | ≥80% Input230Vac@Full load |
| Operating temperature | -10°C~40°C |
| Storage Temperature | -40°C~70°C |

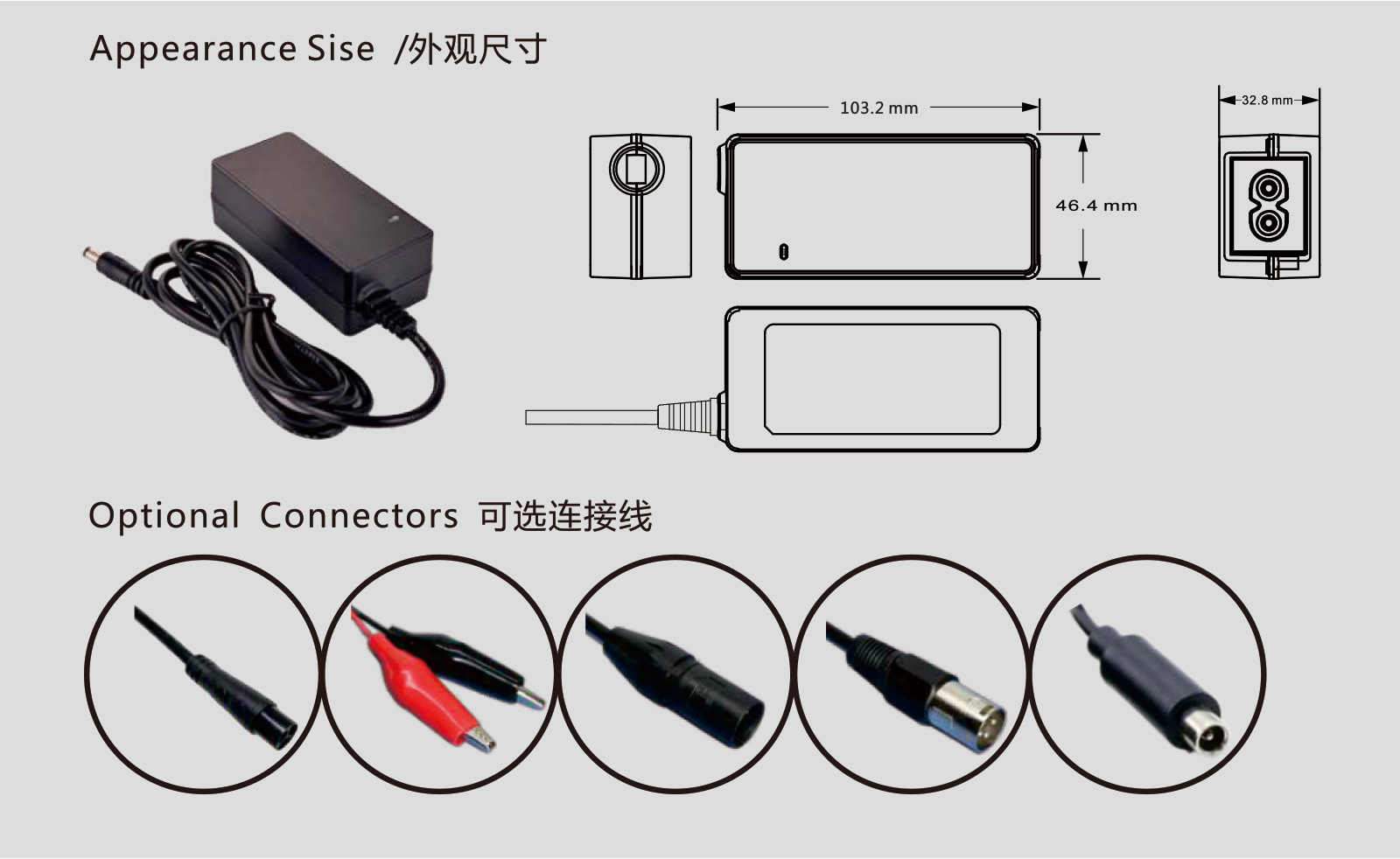

| Product size Dimensuons (mm) | 103.2*46.4*32.8 |
| Net Weight of Product | 0.4KG |
| Over current protection |
| Overvoltage protection |
| Short circuit protection |
| Reverse polarity protection |
| Anti reverse current protection |
| Anti spark protection |
| Specification and Model | Lithium iron phosphate/LiFePO4 | 14.6V3A | 29.2V1.5A | 43.8V1A | 58.4V0.8A |
| Triple/Litium | 12.6V3A | 29.4V1.5A | 42V1A | 54.6V0.9A | |
| Lead acid/Lead acid | 12V3A | 24V1.5A | 36V1A | 48V0.8A |
