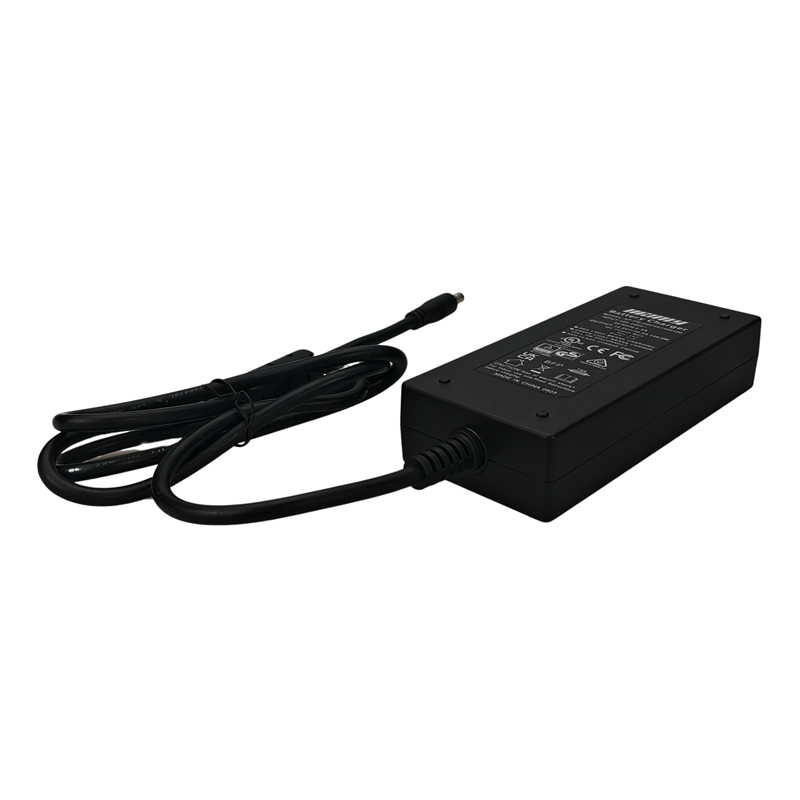

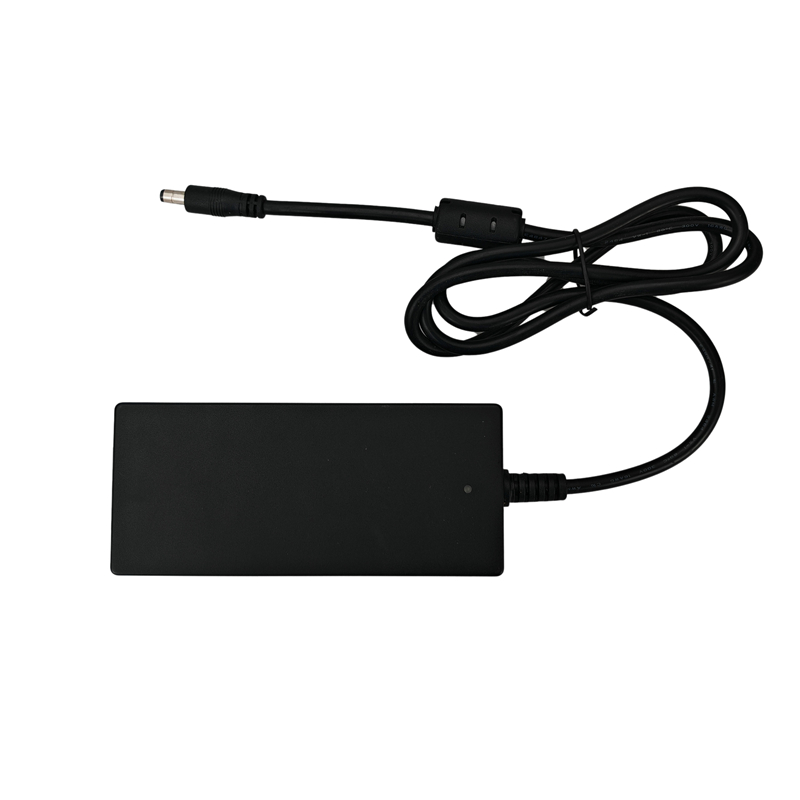

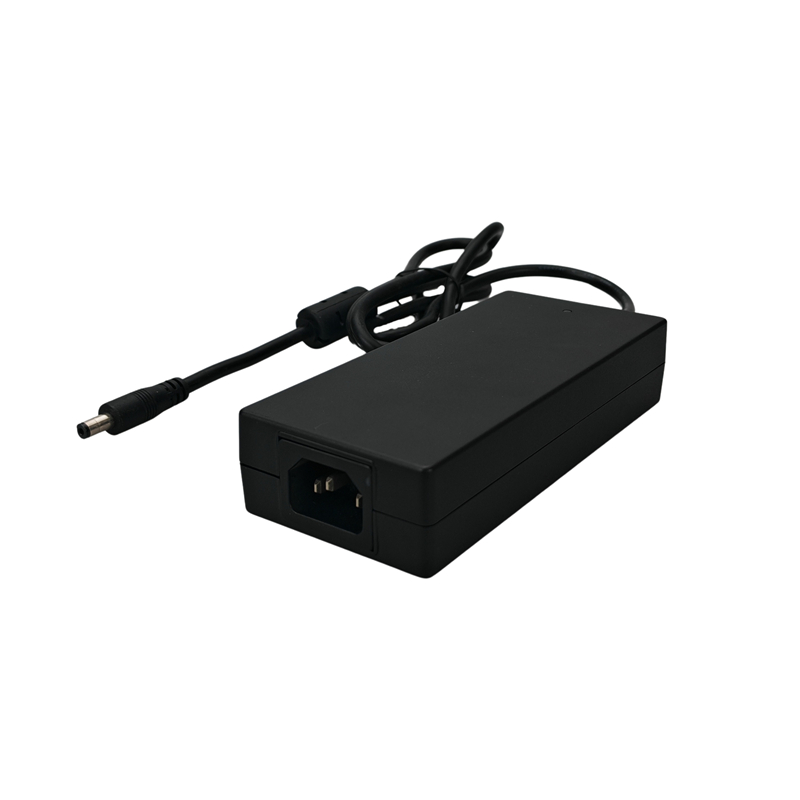

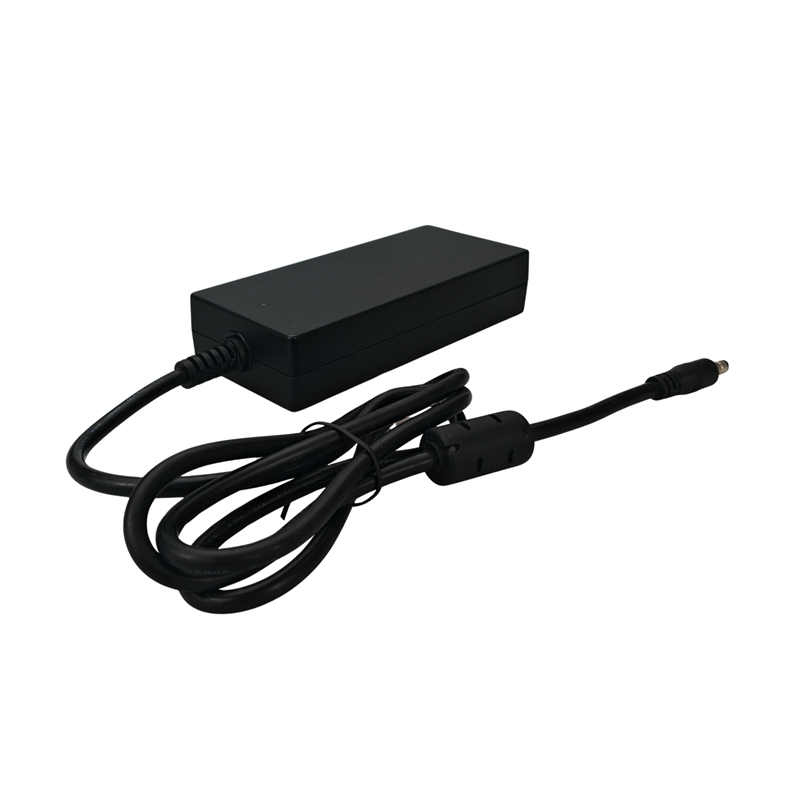

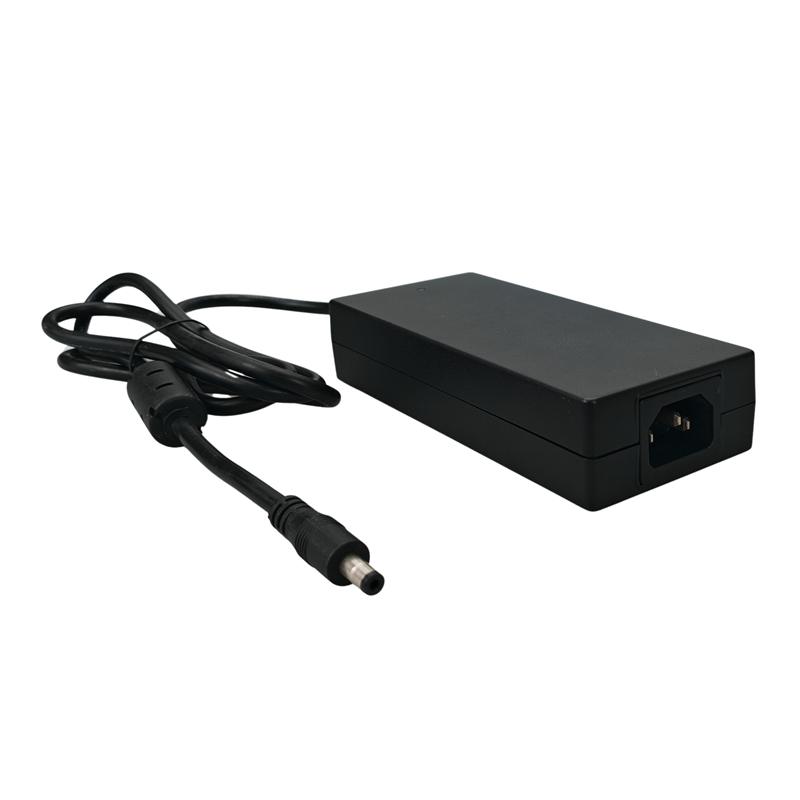

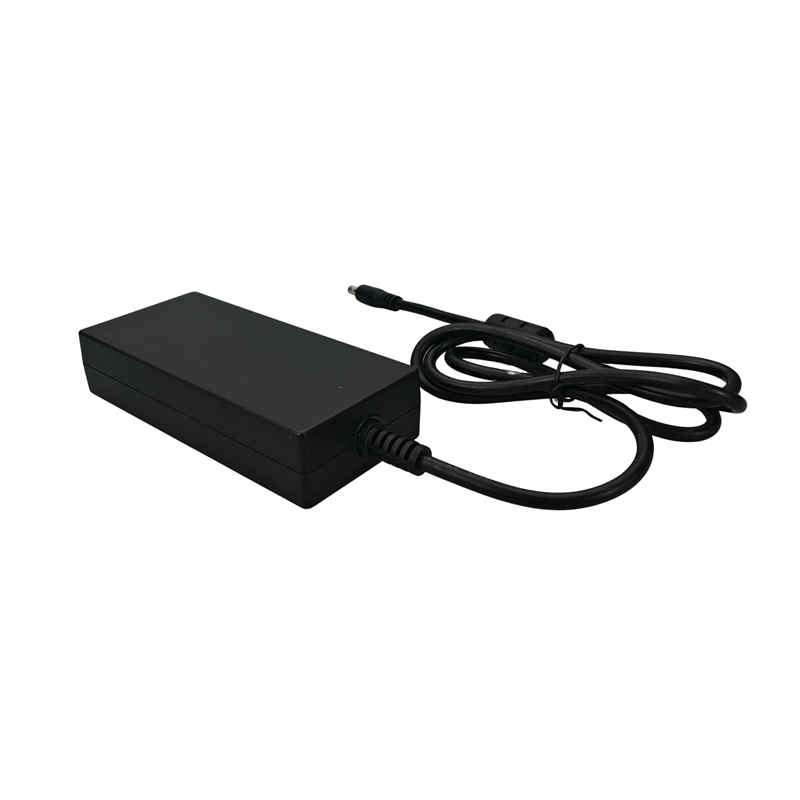

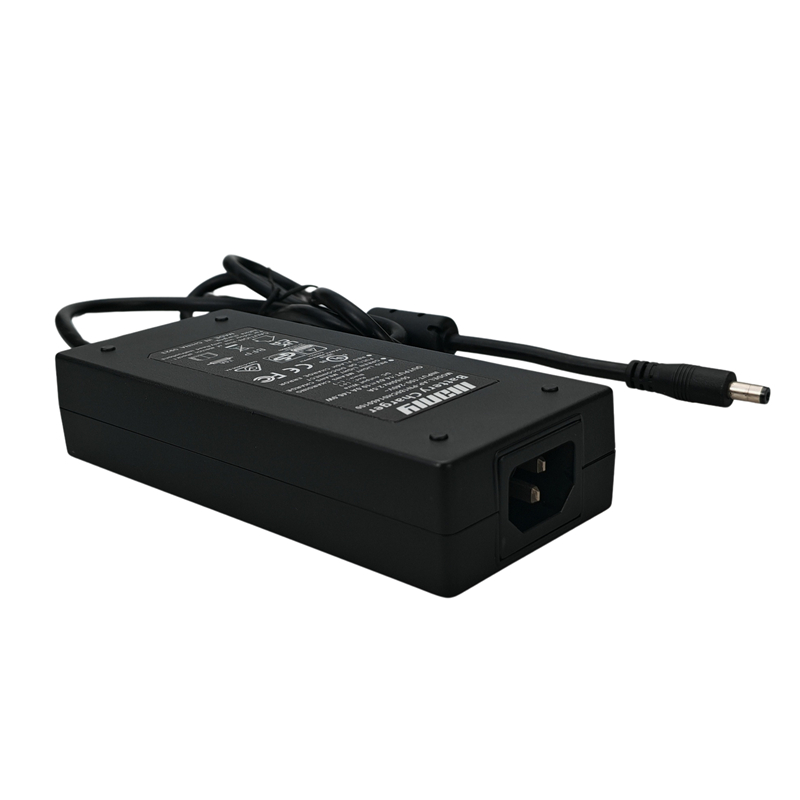

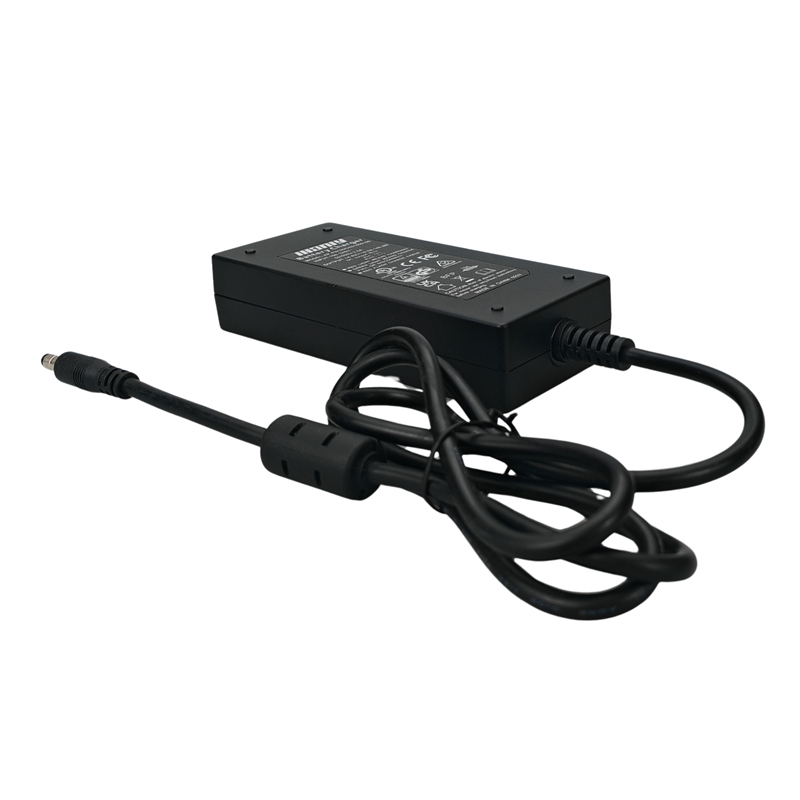

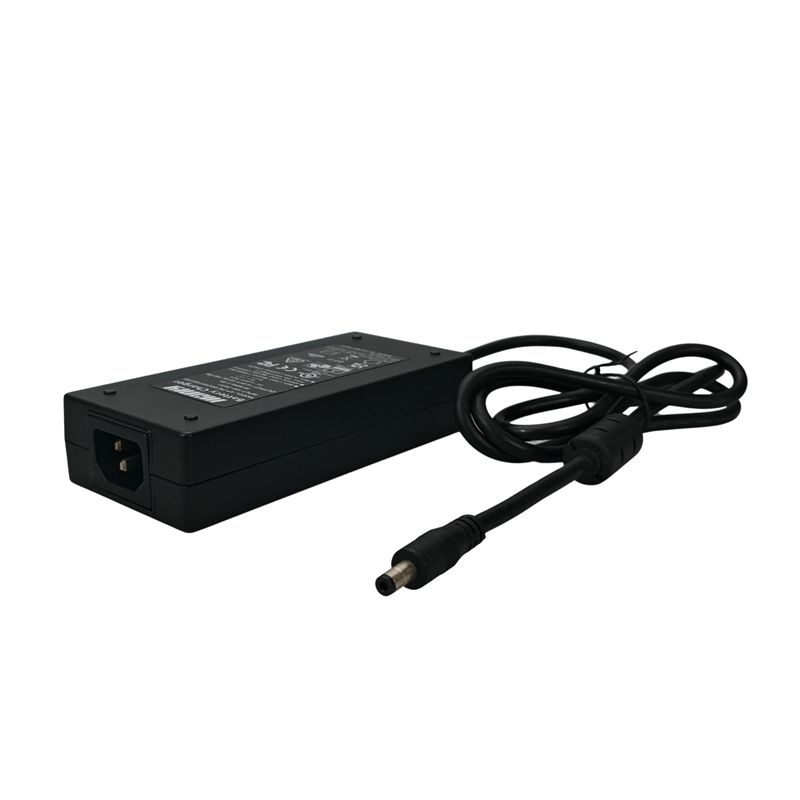

Model：12-72V 2-10A
Typical outputs: 12V10A, 24V 6A, 36V4A, 48V3A, 60V2.5A, 72V2A
Protection: overcurrent protection, overvoltage protection, short circuit protection, reverse connection protection, battery open circuit protection
Safety certification: CE
| Rated Input Voltage | 100Vac-240Vac |
| Input Frequency | 50/60 Hz |
| Input Current | 2.5A MAX |
| Power Factor | ≥0.9 Input 230Vac@ Full load |
| Output Voltage | 10-88.2V |
| Output Current | 0.1-10A |
| Full Load Efficiency | ≥90% Input230Vac@Full load |
| Operating Temperature | -10°C~40°C |
| Storage Temperature | -40°C~70°C |

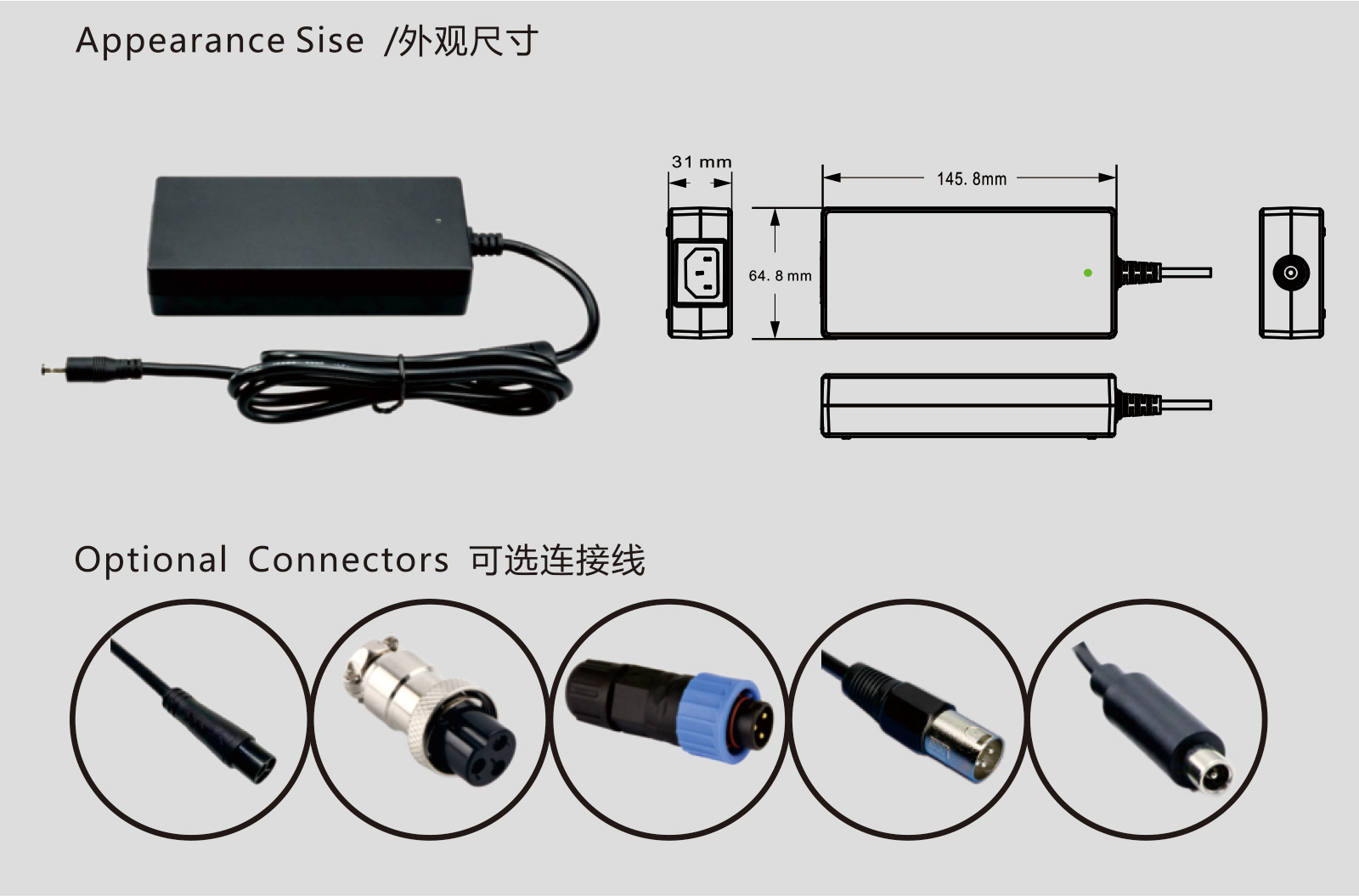

| Product Dimensions (mm) | 145.8*64.8*31 |
| Net Weight | 0.5KG |
| Over current protection |
| Overvoltage protection |
| Short circuit protection |
| Reverse polarity protection |
| Anti reverse current protection |
| Anti spark protection |
| Specification and Model | Lithium iron phosphate/LiFePO4 | 14.6V10A | 29.2V6A | 43.8V4A | 58.4V3A | 73V2.4A |
87.6V2A |
| Triple/Litium | 12.6V10A | 29.4V6A | 42V4A | 54.6V3A | 71.4V2.5A |
84V2A |
|
| Lead acid/Lead acid | 12V10A | 24V6A | 36V4A | 48V3A | 60V2.5A | 72V2A |
