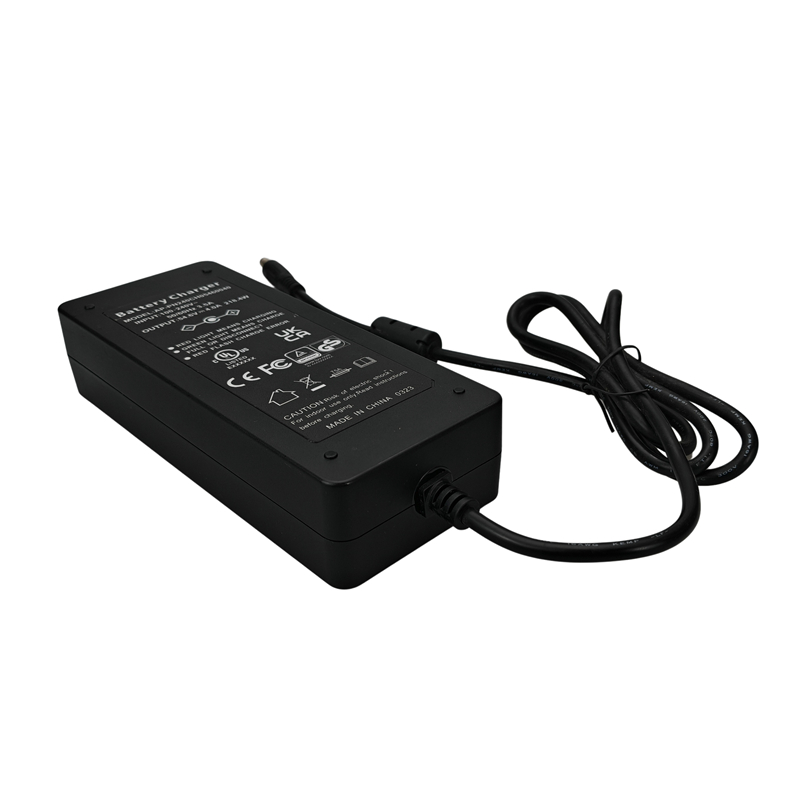

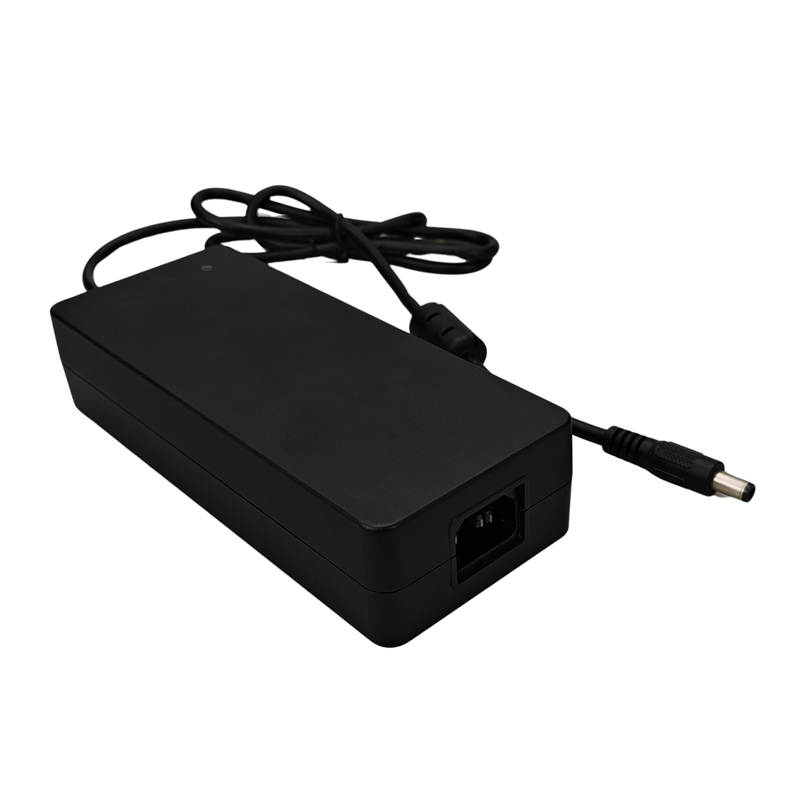

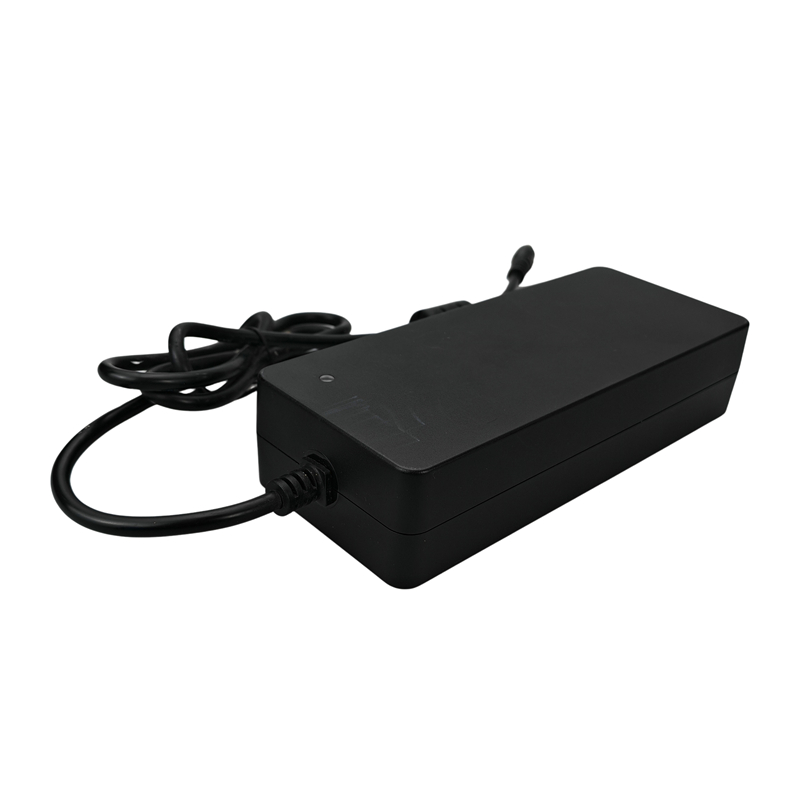

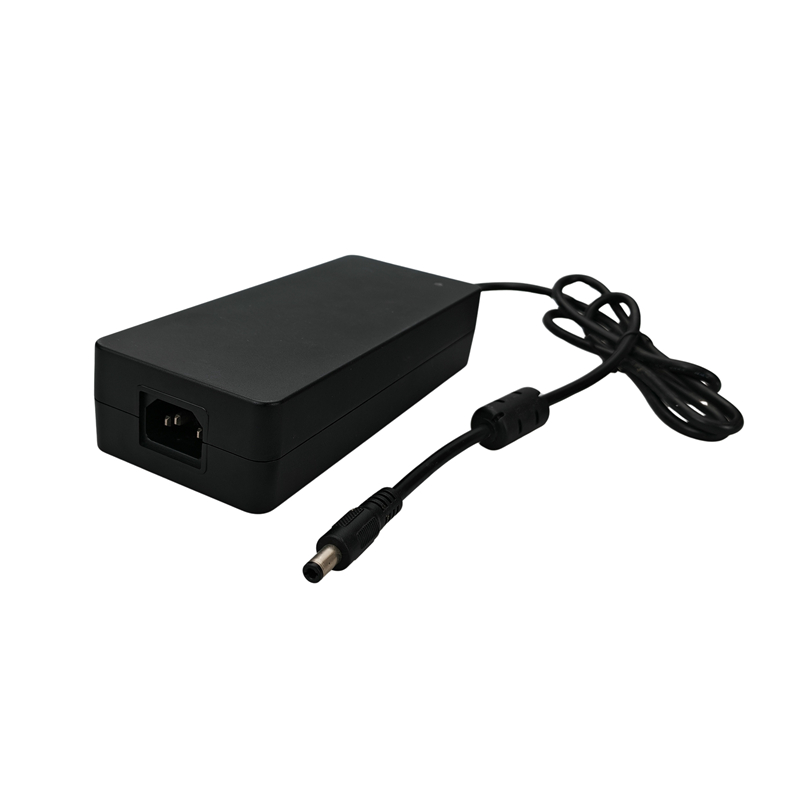

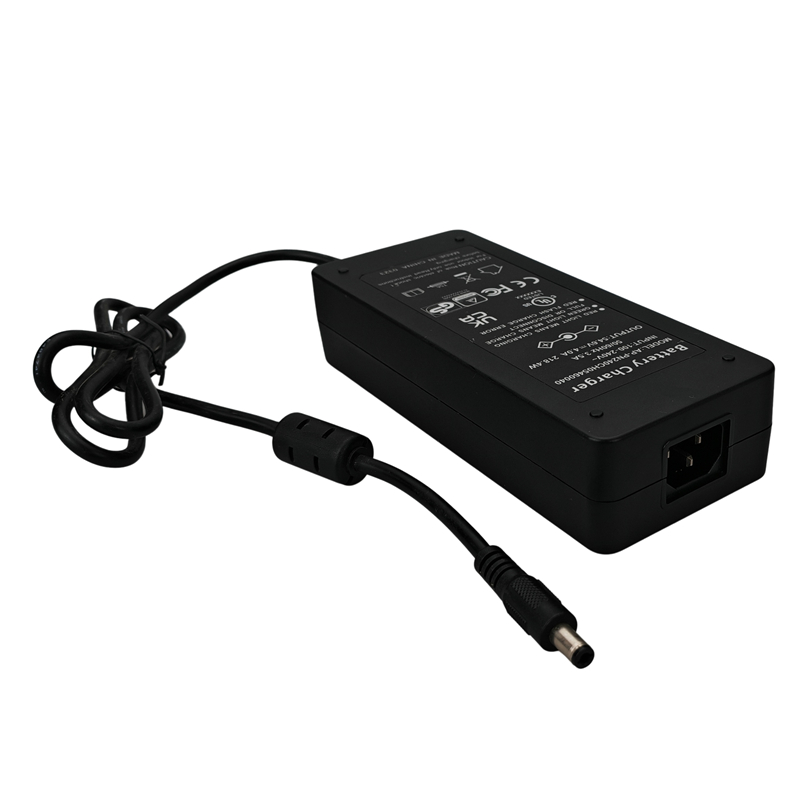

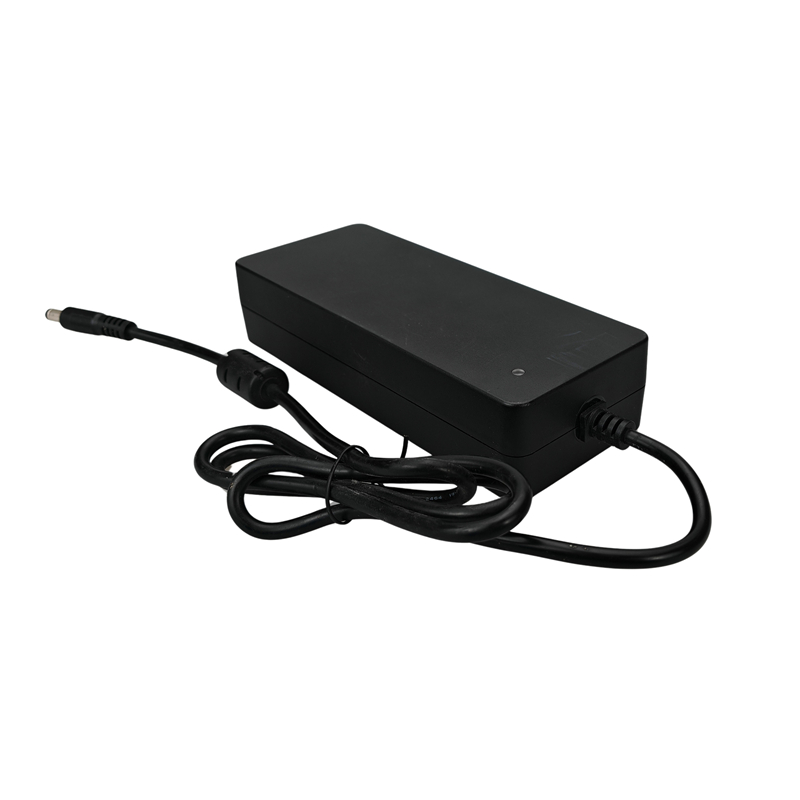

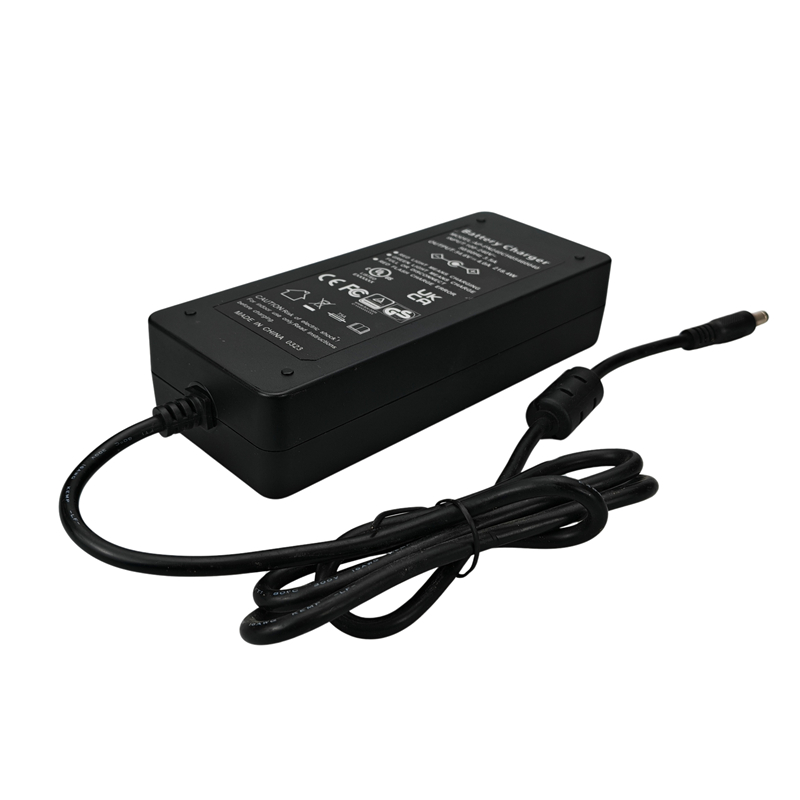

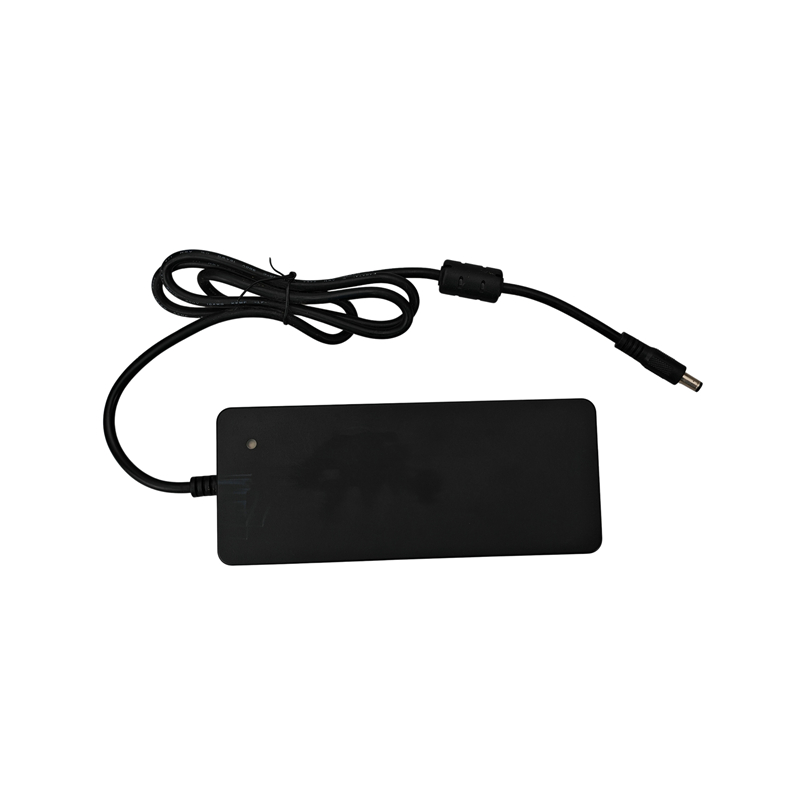

Model：12-72V 2.5-12A
Typical outputs: 12V12A, 24V8A, 36V5A, 48V4A, 60V3A, 72V2.5A
Protection: overcurrent protection, overvoltage protection, short circuit protection, reverse connection protection, battery open circuit protection
Safety certification: CE
| Rated Input Voltage | 100Vac-240Vac |
| Input Frequency | 50/60 Hz |
| Input Current | 5A MAX |
| Power Factor | ≥0.9 Input 230Vac@ Full load |
| Output Voltage | 10-88.2V |
| Output Current | 0.1-12A |
| Full Load Efficiency | ≥90% Input230Vac@Full load |
| Efficiency | Support 485 |
| Operating Temperature | -10°C~40°C |
| Storage Temperature | -40°C~70°C |

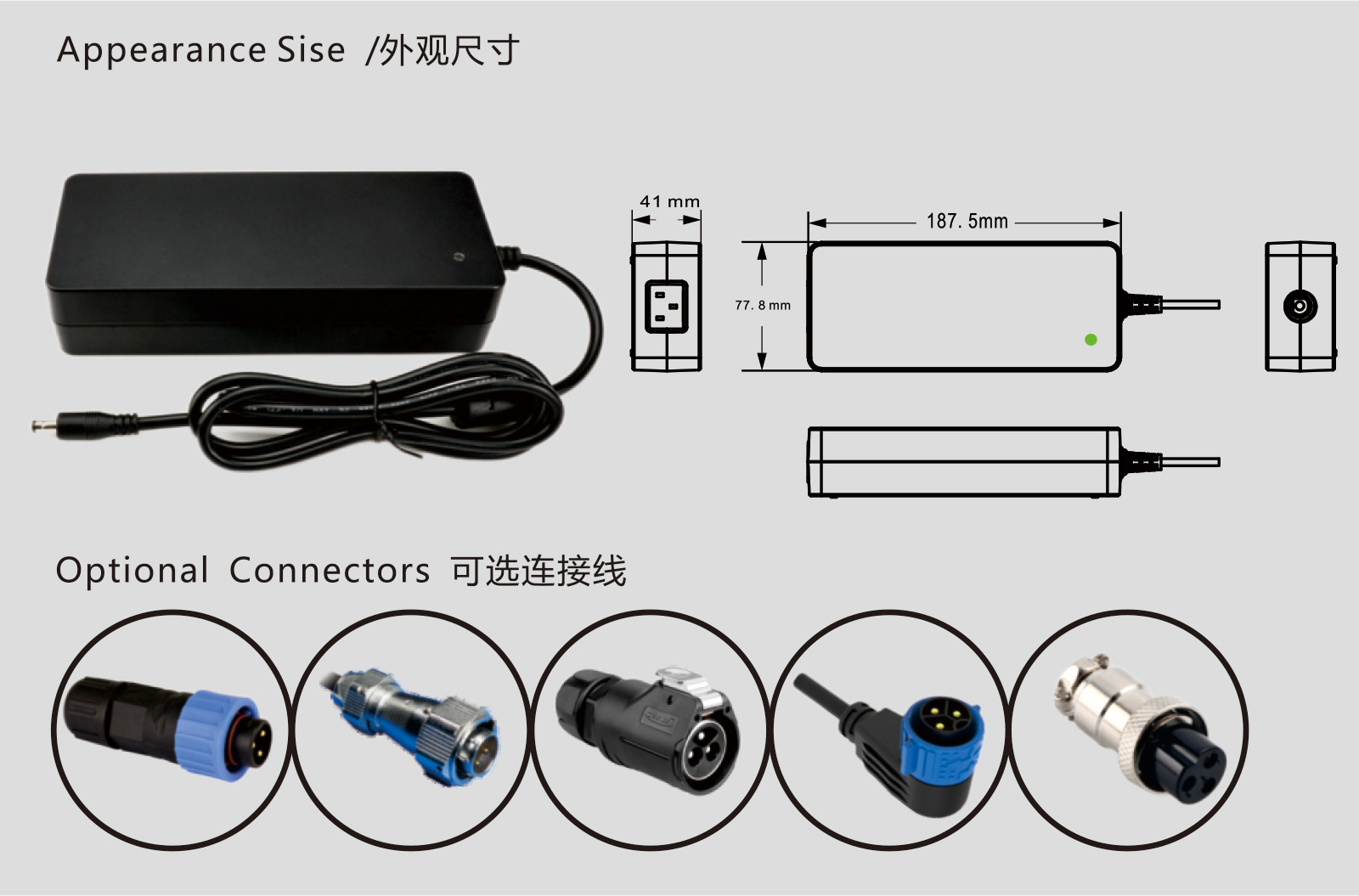

| Product Dimensions (mm) | 187.5*77.8*41 |
| Net Weight | 1.1KG |
| Over current protection |
| Overvoltage protection |
| Short circuit protection |
| Reverse polarity protection |
| Anti reverse current protection |
| Anti spark protection |
| Specification and Model | Lithium iron phosphate/LiFePO4 | 14.6V12A | 29.2V8A | 43.8V5A | 58.4V4A | 73V3A |
87.6V2.5A |
| Triple/Litium | 12.6V12A | 29.4V8A | 42V5A | 54.6V4A | 71.4V3A |
84V2.5A |
|
| Lead acid/Lead acid | 12V12A | 24V8A | 36V5A | 48V4A | 60V3A | 72V2.5A |
