1200W waterproof aluminum shell charger

Model：12-72V 12-40A

Typical outputs: 12V40A, 24V 40A, 36V25A, 48V20A, 60V15A, 72V12A

Protection: overcurrent protection, overvoltage protection, short circuit protection, reverse connection protection, battery open circuit protection

Safety certification: CE

Request A Quote
Technical indicators

Rated Input Voltage 100Vac-240Vac
Input Frequency 50/60 Hz
Input Current 16A MAX
Power Factor ≥0.95 Input 230Vac@ Full load
Output Voltage 12-90V
Output Current 0.1-40A
Full Load Efficiency ≥90% Input230Vac@Full load
Efficiency Support CAN 485
Operating Temperature -10°C~40°C
Storage Temperature -40°C~70°C
Waterproof class Ip67
Dimensions(mm) 230*122*78.2
Net Weight 3.5KG
Protection function

Over current protection
Overvoltage protection
Short circuit protection
Reverse polarity protection
Anti reverse current protection
Anti spark protection
Specification and model

Specification and Model Lithium iron phosphate/LiFePO4 14.6V40A 29.2V40A 43.8V25A 58.4V20A 73V15A
 87.6V12A
Triple/Litium 12.6V40A 29.4V40A 42V25A 54.6V20A 71.4V15A
 84V12A
Lead acid/Lead acid 12V40A 24V40A 36V25A 48V20A 60V15A 72V12A

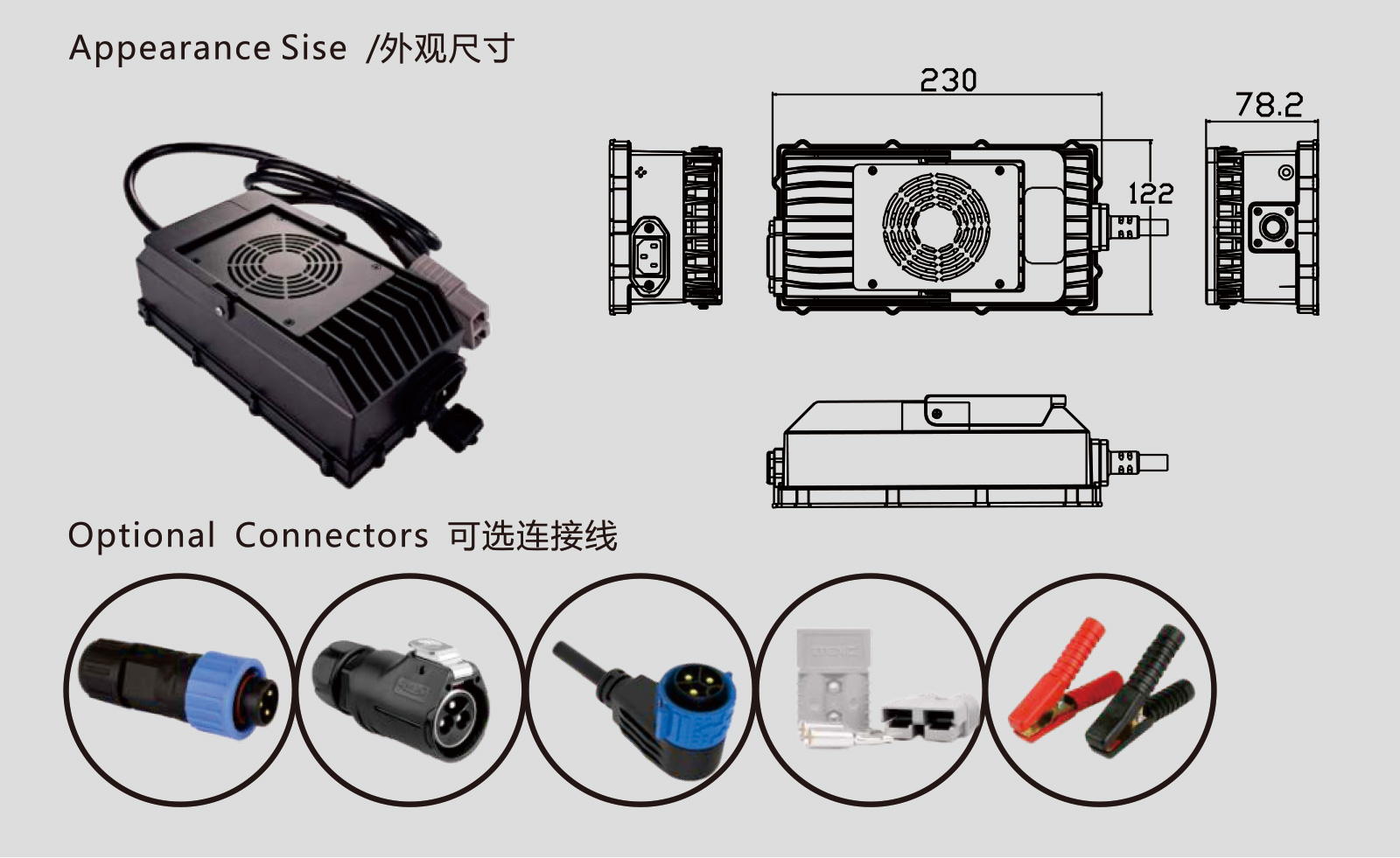

Product size


Product certification

UL.svgETL.svgFCC.svgCE.svgGS.svgUKCA.svgPSE.svgKC.svgSAA.svg3CC.svgCQC.svg
