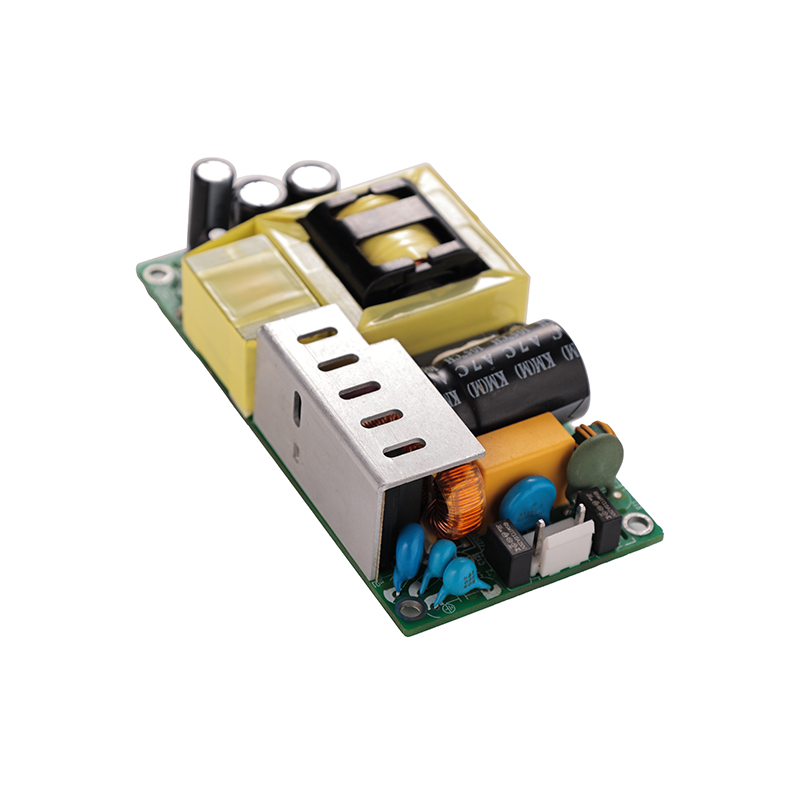

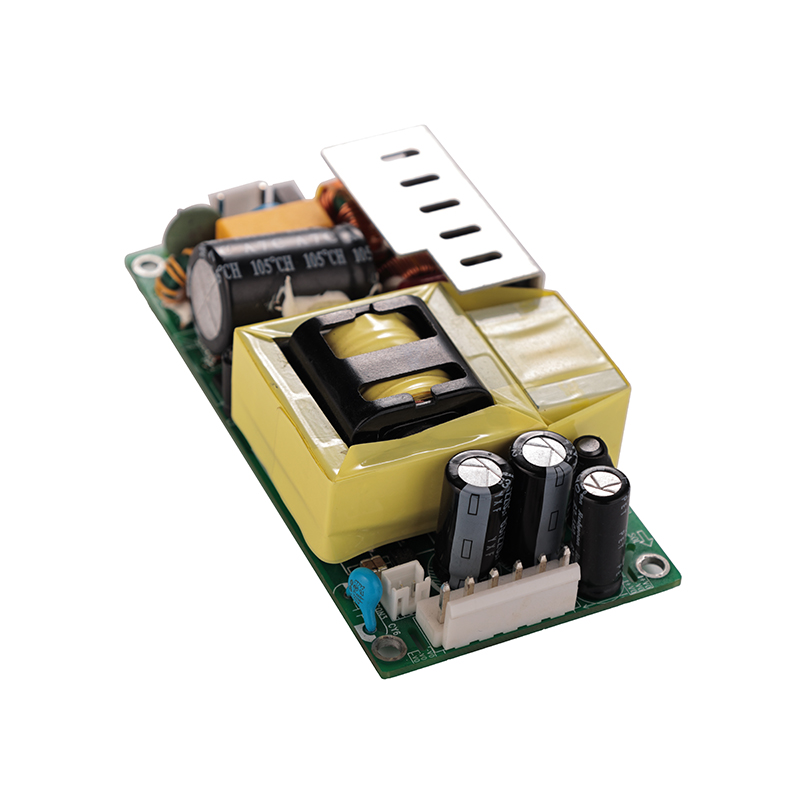

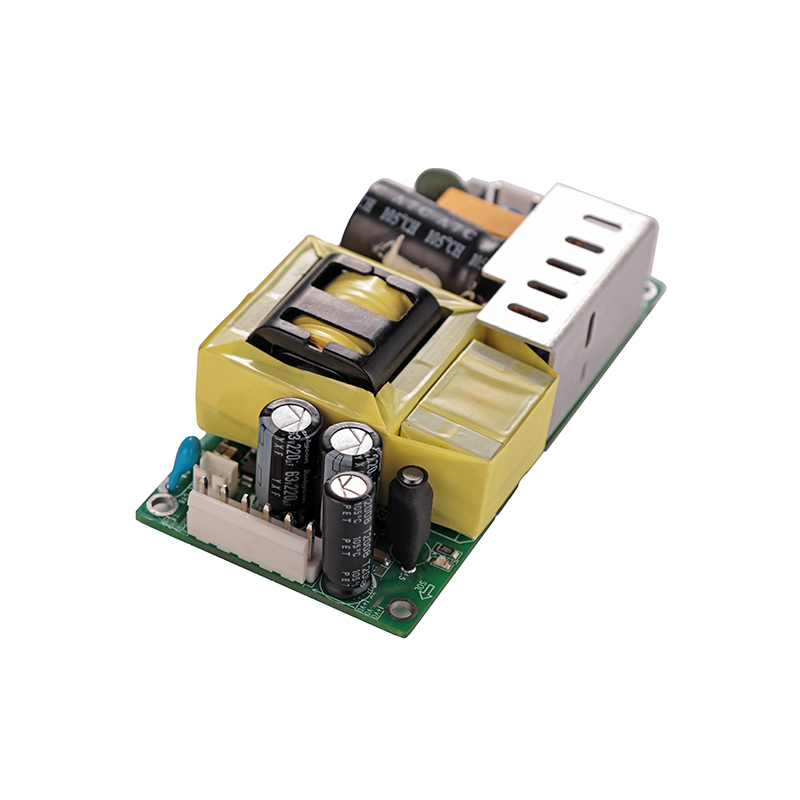

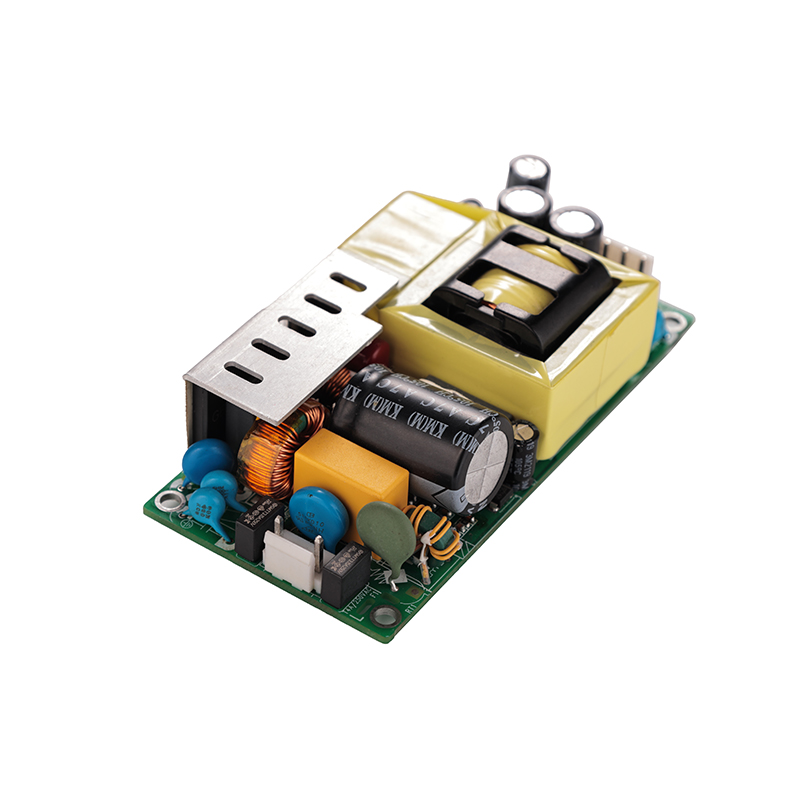

225W bare board power supply

Model：225W bare board power supply

Rated input voltage 100Vac-240Vac

Full load efficiency ≥ 92% Input230Vac@Full load

Natural heat dissipation 13CFM air-cooled

Request A Quote
Specification and model

Rated input voltage 100Vac-240Vac
Input Frequency 47-63 Hz
Input current 3A MAX
Power Factor ≥0.9 Input230Vac@Full load
Output Voltage 12V-48V
Output Curren 0.1-12A
Full Load Efficiency ≥92% Input230Vac@Full load
Operating Temerature -10℃~40℃
Storage Temperature -40℃~70℃
Dimensuons(mm) 101.6*52.5*27.5
Net Weight 0.2KG

Model Output voltage 12V 15V 18V 24V 48V Natural heat dissipation
13CFM air-cooled
Rated current 11.67A 9.33A 7.77A 5.83A 2.91A
18.75A 15A 12.5A 9.4A 4.7A
Product certification

UL.svgETL.svgFCC.svgCE.svgGS.svgUKCA.svgPSE.svgKC.svgSAA.svg3CC.svgCQC.svg
